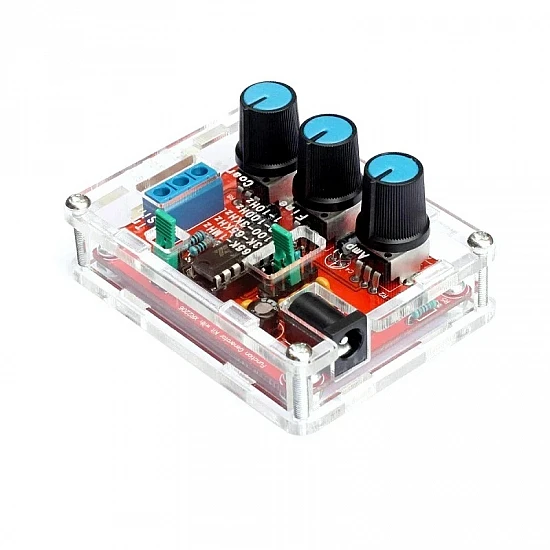

XR2206 High Precision Signal Generator DIY Kit - With Acrylic Case

DIY Kit for the XR2206 High Precision Function Signal Generator Sine Triangle Square Output 1Hz-1MHz Adjustable Frequency Amplitude is a high-quality sine, triangle, and square wave generator. It is a soldering and installation kit. This function generator can generate square, sine, and triangle waveforms with frequencies ranging from 1Hz to 1MHz and a supply voltage of 9V to 12VDC. The waveforms' amplitudes can range from 0 to 3 VDC.

• High-resolution sine, triangle, as well as square waveforms can be generated.
• 1Hz-1MHz frequency range
• Frequency and amplitude are each adjustable.
• The frequency adjustment process requires coarse and fine tuning.
• Use 9-12V external power or a 9V battery for a wide power supply range (NOT Included).
• All of the components are through hole, providing installation a breeze.

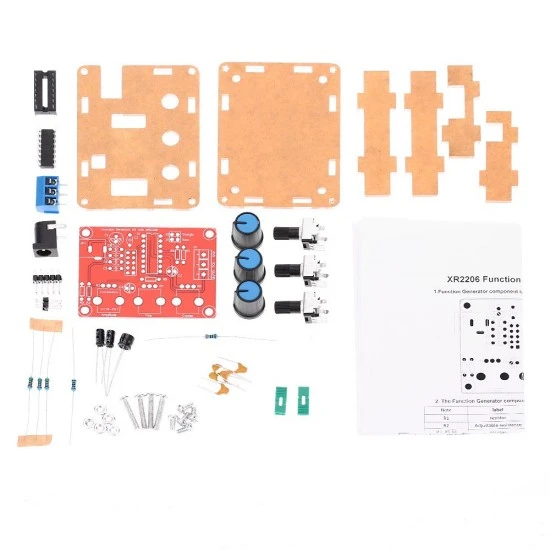

Package includes:-

1   X XR2206 High Precision Signal Generator DIY Kit
1   X Acrylic Case For Signal Generator



Note: This is a DIY product hence it does not covered under the Return/Replacement or warranty.
