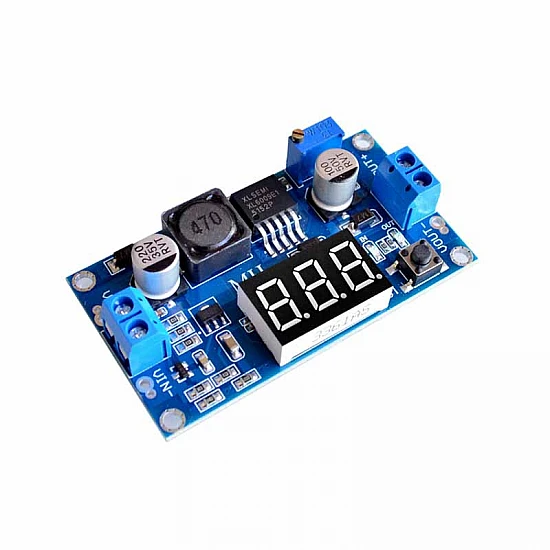

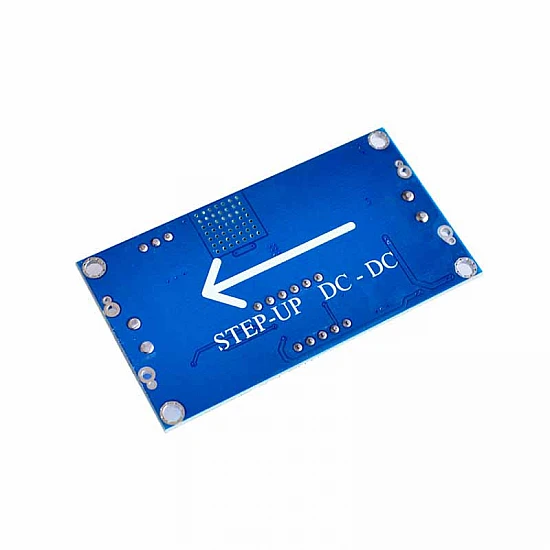

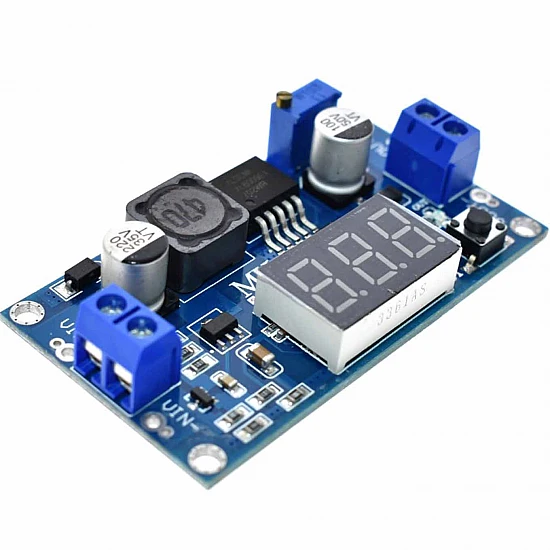

XL6009 LED 4A DC-DC Voltage Step Up Adjustable Boost Voltmeter Module for 4.5-32V to 5-35V

Features:-

• Ultra-wide input voltage range of 4.5 to 32 volts (normally running below 5 volts, but the digital tube does not function); ideal operating voltage range of 5 to 32 volts.
• To satisfy your demands, a very wide boost output voltage of 5–55V is provided.
• High efficiency 4A MOSFET switching tube built-in, with up to 94% efficiency.
• With a small-capacity filter capacitor that has less ripple and volume, extremely good results may be obtained at the ultra-high switching frequency of 400 KHz.
• Knowing the operating conditions is simple with a power indicator.
• The voltmeter inaccuracy is 0.05V thanks to a more sophisticated voltage microcontroller, and the range is 0-35V. Additionally, the voltmeter can self-calibrate and show the results. (Note: Please make sure the input voltage is more than 4.5V in order to guarantee the voltmeter's accuracy.)
• To change the measurement, input, or output voltage, touch the button.
• The voltage being measured is indicated by an indicator light, and the settings are saved even if the device is switched on and off.
• When the display is not required, the voltmeter may be conveniently shut off and tapped.
• With terminal blocks, the wire bond point is preserved and no soldering iron is required.
• It is safe to use since it contains overheat and short circuit protection.

Package Includes:-

1 X XL6009 DC-DC Voltage Step Up Adjustable Boost Voltmeter Module
