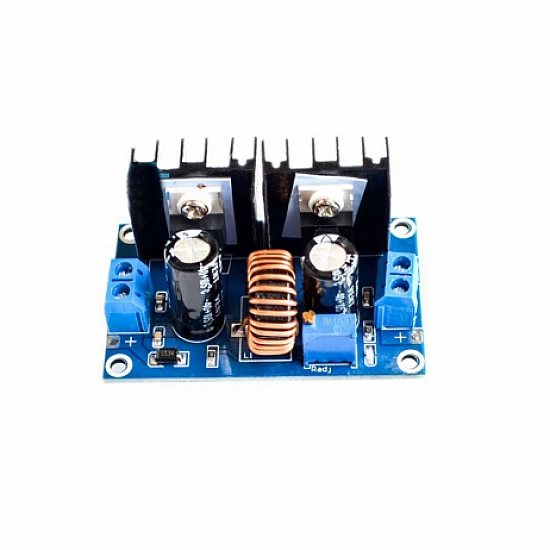

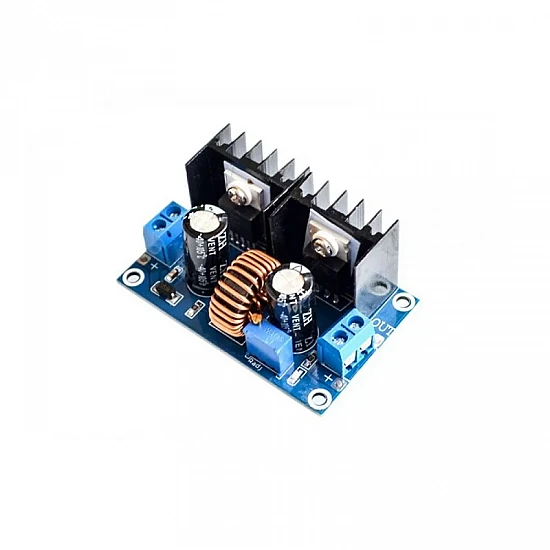

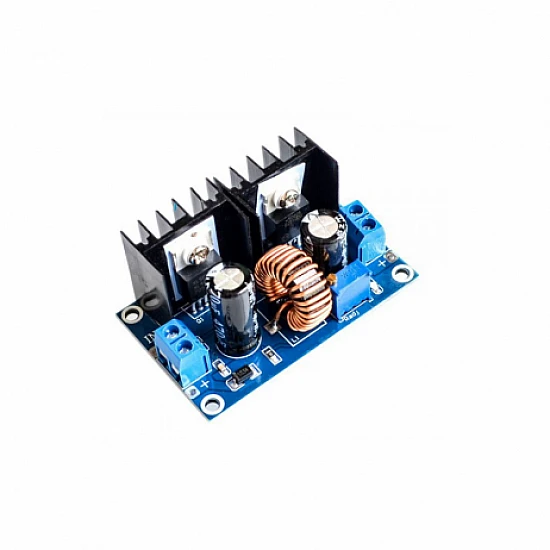

XL4016E1 200W Step Down Power Supply Module

This XL4016E1 200W step-down power supply module has a voltage rating of 4-40VDC up to 1.25-36VDC. It is rated at a maximum power output of 200W. An external fan can be added to the heatsinks to increase the output current to 8A.

Features:

• Method of adjustment: First, adjust the input power (between 4-40V), then use a multimeter to measure the output voltage and adjust the potentiometer (usually clockwise boost, buck counterclockwise).

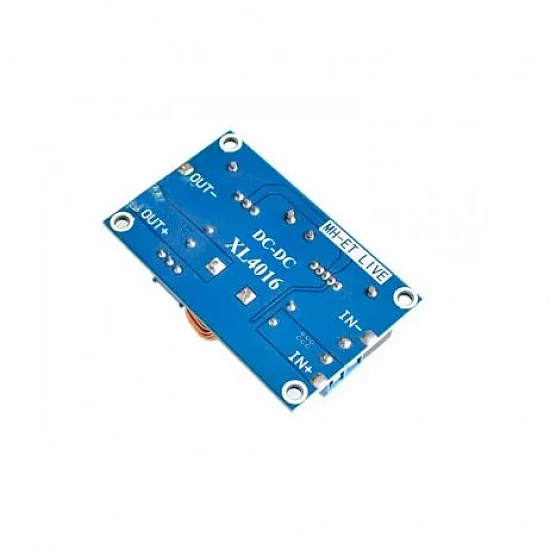

• Input: IN+ input positive IN- input negative
• Output: OUT+ output positive OUT- output negative
• The static power consumption of static electricity is approximately 6mA.
• Connection: After the PCB is soldered, you can use welding to connect it.
• Protection against short circuits: Current limiting, thermal protection, self-recovery
• Non-isolated step-down (BUCK)switching regulator.
• Short circuit protection: Current limiting, self-recovery
• The direction of potentiometer adjustment is Clockwise (increase), and Anti-clockwise, respectively.
• Non-synchronous rectification

Package Content:

1 x XL4016E1 200W Step-Down Power Supply Module
