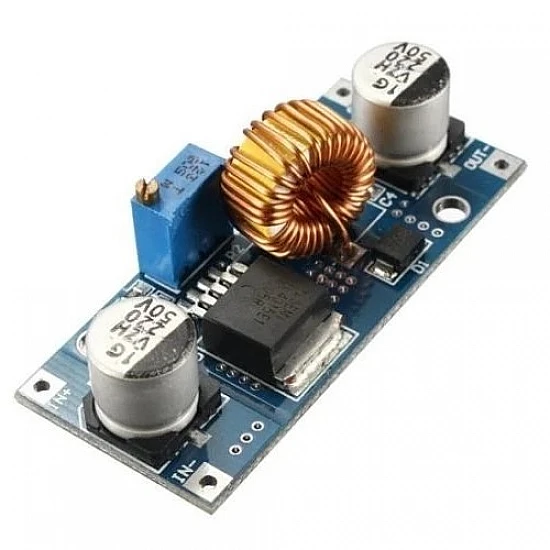

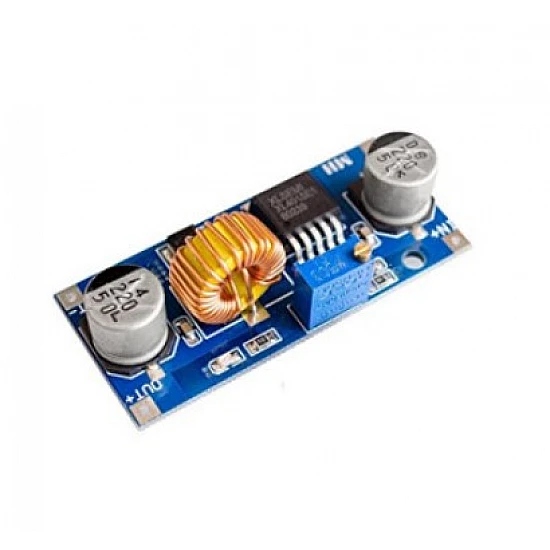

XL4015 5A DC-DC Adjustable Step-Down Power Supply Module

XL4015 5A DC-DC Adjustable Step-Down Power Supply Module
XL4015 5A DC-DC Adjustable Step-Down Power Supply Module
XL4015 5A DC-DC Adjustable Step-Down Power Supply Module
XL4015 5A DC-DC Adjustable Step-Down Power Supply Module
XL4015 5A DC-DC Adjustable Step-Down Power Supply Module
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹72
10 or more ₹68
50 or more ₹66

(Excluding 18% GST)

A 180 KHz fixed frequency PWM buck (step-down) module, the XL4015 5A DC-DC Step Down Adjustable Power Supply Buck Module is able to drive a 5A load with high efficiency, minimal ripple, and excellent line and load control.This item is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module with good line and load control, high efficiency, minimal ripple, and the ability to drive a 5A load.

Applications for the DC/DC buck module include batteries, power transformers, DIY adjustable regulated power supplies, LCD Monitor and LCD TV portable instrument power supplies, among others. industrial equipment buck, 24V laptop power supply for vehicles, and telecom/networking equipment.The output voltage of this module is programmable. Thanks to its ability to regulate voltage, it may also be used as a special charger for lithium batteries (Li-Ion, LiPo). For instance, 12V to 3.3V, 12V to 5, 24V to 5, 24V to 12, 36V to 24, etc.

Features:-

  • Range of input voltage: 4–38VDC (maximum input voltage is 38V.)
  • output voltage range: adjustable from 1.25 to 36 VDC
  • Output current: 0-5A
  • Output power: 75W
  • extremely effective up to 96%
  • thermal shutdown feature built-in
  • in built current limit function
  • Integrated output short protection feature

Package Includes:-

1 X XL4015 5A DC-DC Adjustable Step-Down Power Supply Module

Technical
Input Voltage

4-38VDC

Output Current

0-5A

Output Power

75W

Output Voltage

1.25-36VDC

Dimensions (LxWxH)

53cmx4cmx12cm
