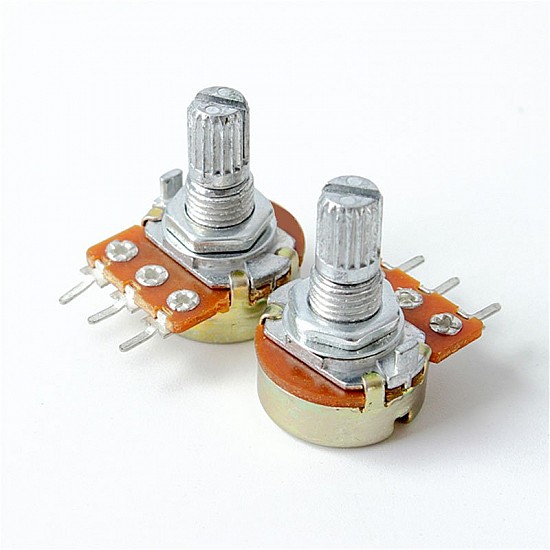

WH148 10K Ohm 3Pin 15mm Shaft Single Potentiometer
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
- Stock: In Stock
- Brand: Import Dukan
- SKU: ID-01-763
₹18
10 or more ₹16
50 or more ₹15
(Excluding 18% GST)
WH148 10K Ohm 3Pin 15mm Shaft Potentiometer is used for adjusting various parameters like voltage, current, etc in an electronic circuit. This is a three-terminal variable resistor that is used to vary or change the resistance.
It is a 10K ohm 3pin 15mm shaft potentiometer.
Package Includes:
1 x WH148 10K Ohm 3Pin 15mm Shaft Single Potentiometer
1x Mounting Nut
Technical | |
Mounting Type | Through Hole |
Operating Temperature Range | -40°C to 80°C |
Resistance | 10K Ω |
Temperature Coefficient | ±100ppm/℃ |
Tolerance | 20% |
Length | 20 mm |
Height | 24 mm |
Width | 16 mm (Body diameter) |
