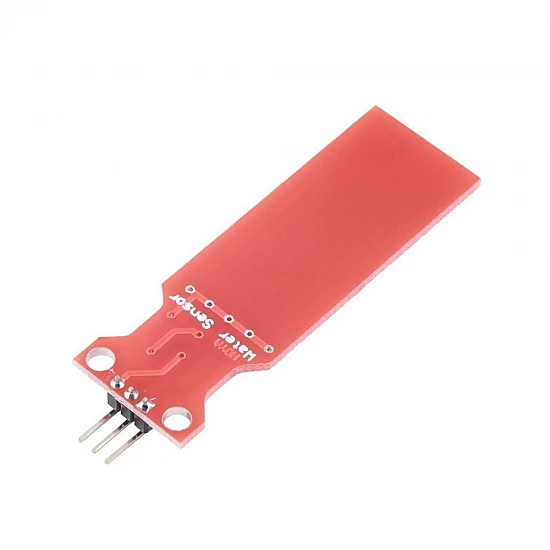

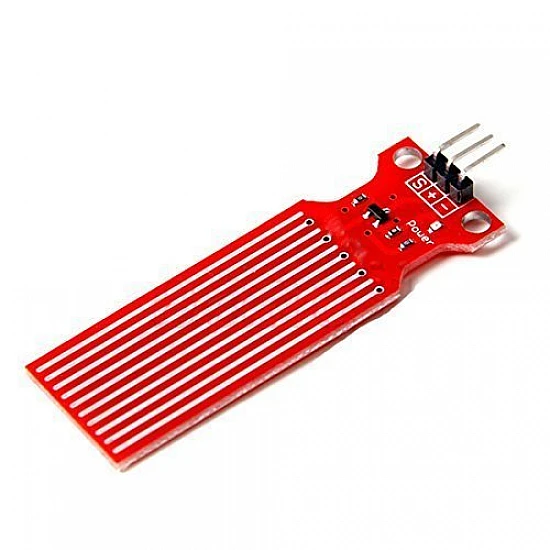

Water Level Depth Detection Sensor Module
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
- Stock: In Stock
- Brand: Import Dukan
- SKU: ID-01-786
₹21
10 or more ₹19
50 or more ₹18
(Excluding 18% GST)
Water Sensor water level sensor is an easy-to-use, cost-effective high level/drop recognition sensor, which is obtained by having a series of parallel wires exposed traces measured droplets/water volume in order to determine the water level.
Very Easy to monitor water level as the output to an analog signal is directly proportional to the water level. These output analog values can be directly read via ADC and can also be connected directly to Arduino's analog input pins.
Features :
- easy-to-use,
- cost-effective
- high level/drop recognition sensor
Package Includes :
1 x Water Level Depth Detection Sensor.
Technical | |
Detecting range | 4×1.6 cm |
Humidity range | 10% -90% non-condensing |
Operating Temperature Range | -10 to 30 °C |
Operating Voltage | 3 ~ 5 V |
Operating current | 20 mA (Max) |
Length | 6 cm |
Height | 0.15 cm |
Width | 2 cm |
