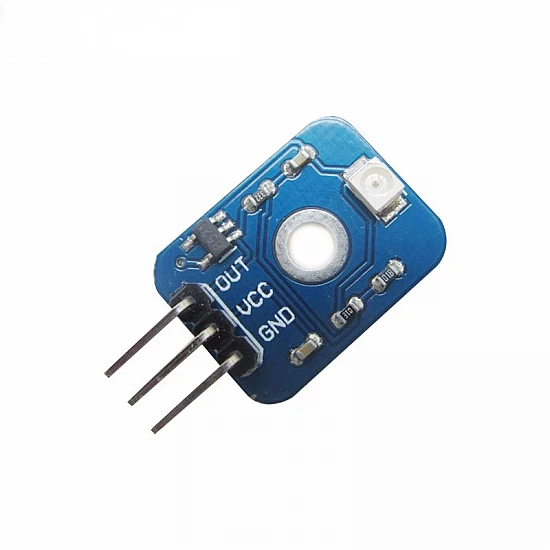

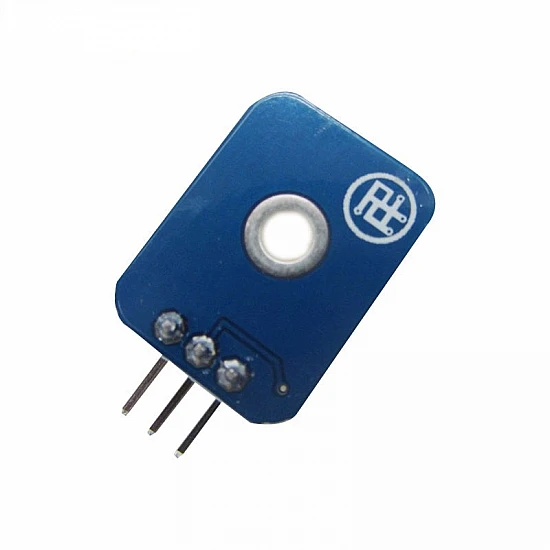

UV Detection Sensor Module

UV Detection Sensor Module
UV Detection Sensor Module
UV Detection Sensor Module
UV Detection Sensor Module
UV Detection Sensor Module
₹230
7 or more ₹220
30 or more ₹215

(Excluding 18% GST)

UV Detection Sensor Module is used for detecting the intensity of incident ultraviolet (UV) radiation – radiation lying in the ultraviolet range, with wavelengths shorter than light but longer than Xrays.

Features:

  • UV detection wavelength: 200-370nm;
  • Fast response, full interchangeability;
  • It is suitable for measuring the total amount of sunlight ultraviolet light;
  • Designed for applications that require high reliability and accuracy to measure ultraviolet index (UVI).

Package Includes:

1 x UV Detection Sensor Module



Technical
Measuring Accuracy

±1UV INDEX

Operating Temperature Range

-20°C to 85°C

Output Voltage

0-1 VDC

Wavelength

200-375nm

Working Voltage

3.3V - 5V

Length

20 mm

Height

5 mm

Width

16 mm
