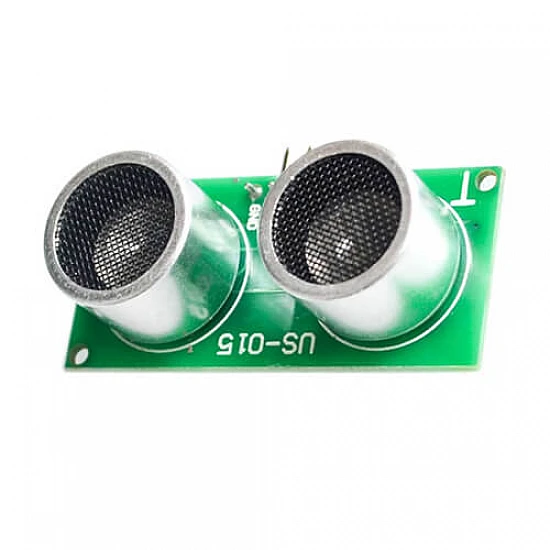

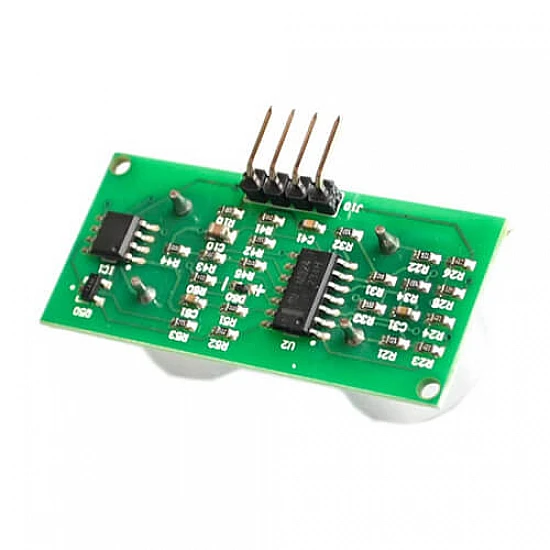

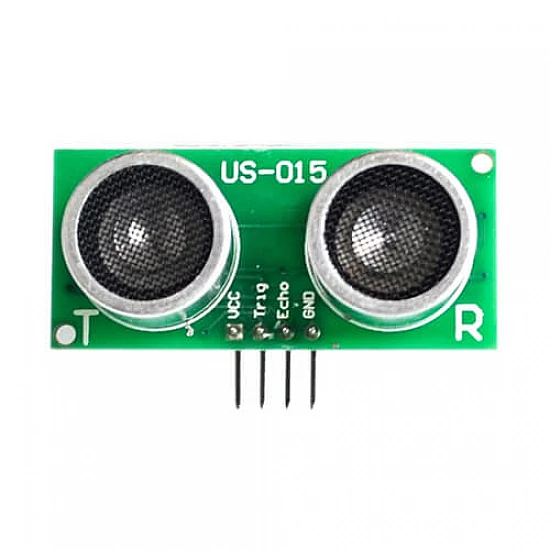

US-015 Ultrasonic Distance Measuring Transducer Sensor
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
- Stock: In Stock
- Brand: Import Dukan
- SKU: ID-01-725
₹187
7 or more ₹184
30 or more ₹183
(Excluding 18% GST)
US-015 Ultrasonic Sensor is accurate than the HCSR04 sensor for distance measurement and object detection. It offers excellent range accuracy up to (1mm) and fairly stable readings. It requires two digital I/O pins (an output pin and an input pin) to interface with it.
Features:
- More accurate than HCSR04.
- It has a large measuring range.
- It detects distance is from 2 cm to 400 cm.
- The static power consumption is less than 3mA.
Package Includes:
1 x US-015 Ultrasonic Distance Measuring Transducer Sensor.
Technical | |
Distance Measuring Range | 2cm – 400cm |
Operating Temperature Range | 0°C to 70°C |
Operating Voltage | 5 VDC |
Sensing Angle | <15deg |
Static Current | Less than 3mA |
Length | 44 mm |
Height | 15 mm |
Width | 20 mm |
