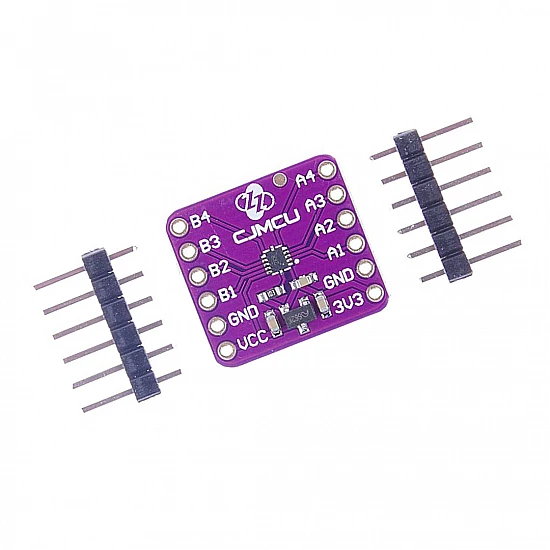

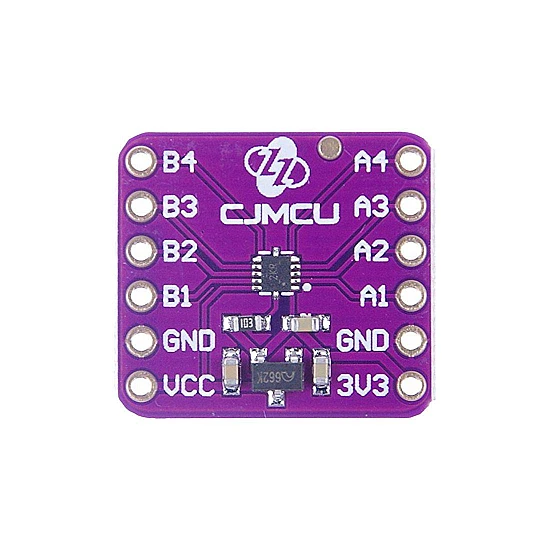

TXB0104 4-Bit Bidirectional Voltage Level Translator

TXB0104 Board is a 4-bit bidirectional voltage-level translator with automatic direction sensing. It features four channels of input/output signals and an output enable line that allows the signal lines to be placed in a high impedance mode when they are unneeded.

Features:

• 4-Bit Bidirectional
• Non-inverting translator
• It uses two separate configurable power-supply rails.
• 1.2V to 3.6V on A Port and 1.65V to 5.5V on B Port (VCCA <= VCCB)

Package Includes:

1 x TXB0104 4-Bit Bidirectional Voltage-Level Translator
