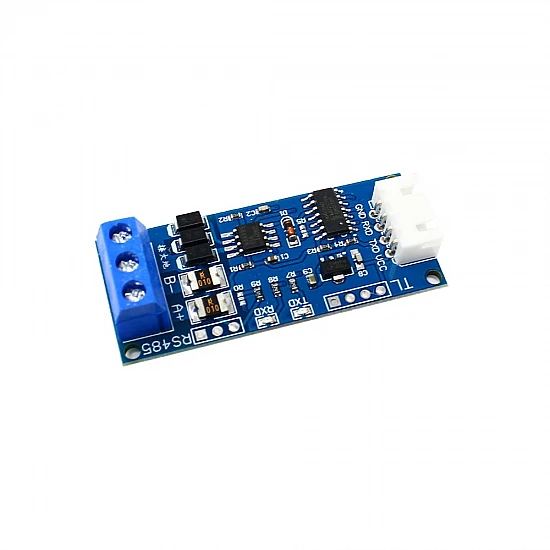

TTL to RS485 Hardware Automatic Converter Module

This is a versatile hardware auto control module that effortlessly converts signals from 3.3V to 5V, ensuring compatibility with a wide range of devices. This converter board is designed with precision and reliability in mind, perfect for industrial applications, automation systems, and other related fields. Its compact size and efficient design make installation an easy process, while its robust construction guarantees long-lasting performance even in challenging environments. Say goodbye to compatibility issues and experience smooth data transmission with our TTL to RS485 Power Supply Converter Board.

Features:

• This module fully considers the 485 bus lightning protection design and anti-interference design.
• It has extremely high EMC (electromagnetic compatibility) and EMI (electromagnetic anti-interference) performance.
• When long-distance transmission in the field, the module is connected to the earth Access to the earth can play a good role in anti-interference and lightning protection, making the 485 bus more secure; the indoor short-distance transmission can not be connected to the earth.

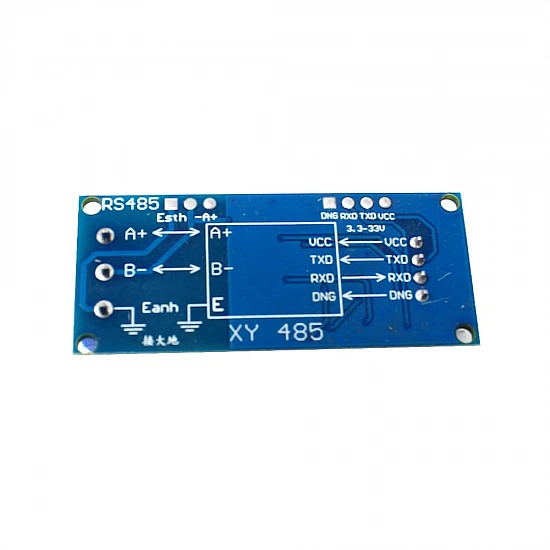

• With standard 2.54 pitch pin headers for your secondary development
• With 120 ohm matching resistance, short-circuit R0 to enable matching resistance, short-circuit is recommended for long-distance transmission.
• Support multi-machine communication, at least 40 nodes can be connected to the same network
• It can be hot-swapped and there will be no signal thrombosis
• Anti-interference wiring and copper laying method to prevent signal interference

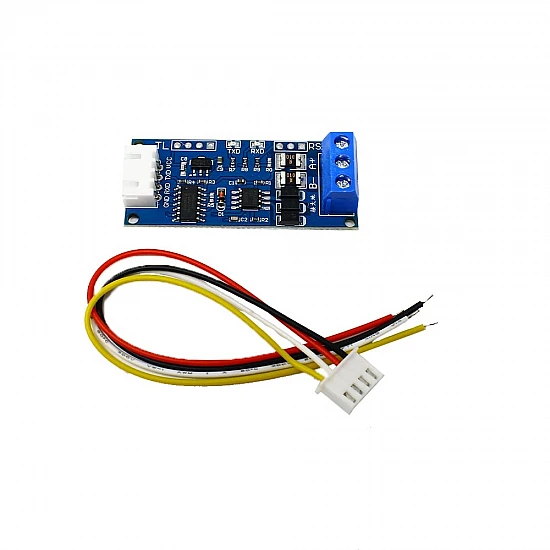

Package Includes:

1 x TTL to RS485 Power Supply Converter Board 3.3V 5V Hardware Auto Control Module

1 x Connection Cable
