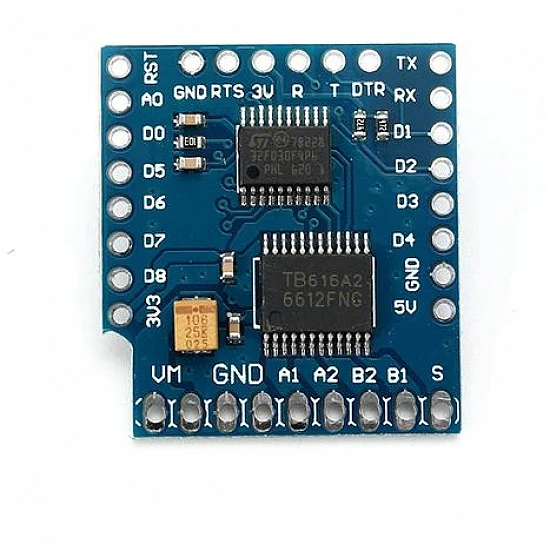

TB6612FNG Wemos D1 Mini I2C Dual Motor Driver Shield

Features:

1. Interface: I2C

2. Power supply voltage: VM = 15V max

3. Output current: Iout = 1.2A ( average ) / 3.2A ( peak )

4. Standby control to save power CW / CCW / short brake / stop motor control modes

5. VM: motor power supply+

6. GND: motor power supply-

7. A1: Motor A A2: Motor A B2: Motor B B1: Motor B

8. S: stand by control port ( In io mode )

9. Standby control mode-I2C mode: control TB6612's STBY with I2C protocol

10. IO mode: control TB6612's STBY with Spin

11. Shield reset mode: short: reset with d1 mini ( reset at power on or press d1 mini's reset button ); open: reset by DTR pin

Package Includes:

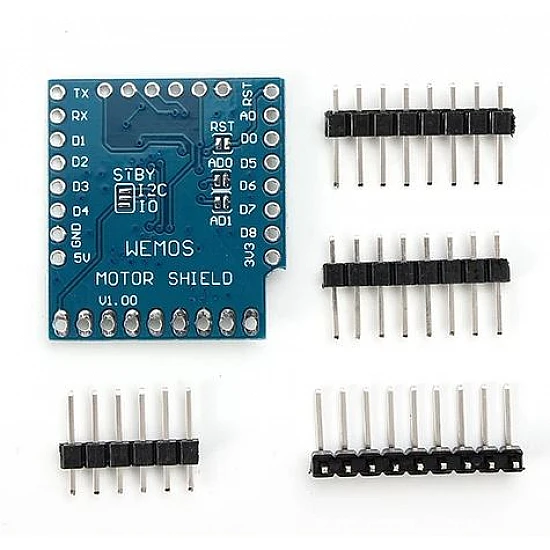

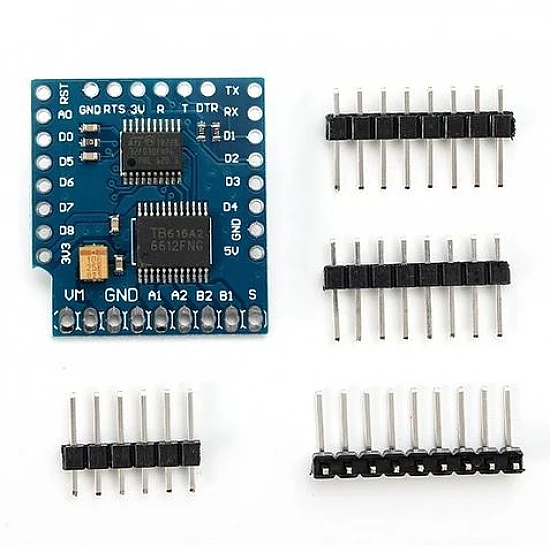

1 x TB6612FNG Wemos D1 Mini I2C Dual Motor Driver Shield.
