TB6612FNG Dual Motor Driver Module 1A For Arduino Micro controller

The TB6612FNG Module motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes – CW, CCW, short-brake, and stop.

The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.

Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).

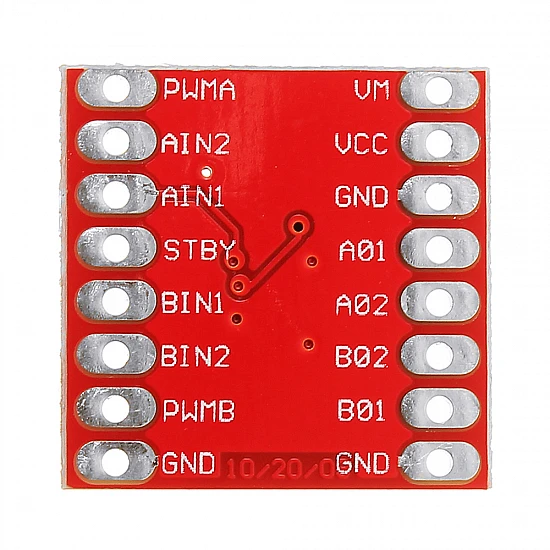

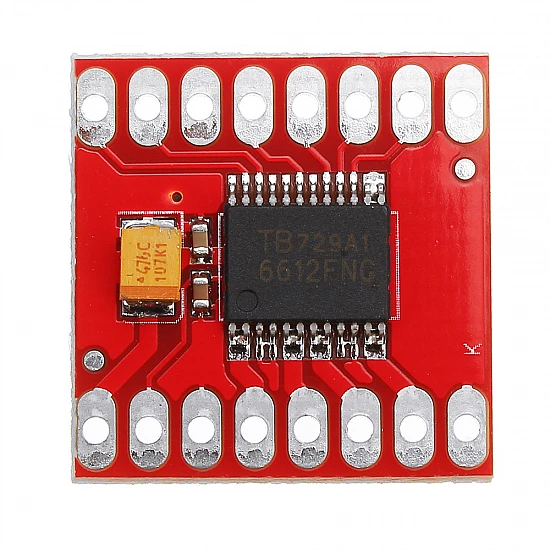

Decoupling capacitors are included on both supply lines. All pins of the TB6612FNG are broken out to two 0.1″ pitch headers; the pins are arranged such that input pins are on one side and output pins are on the other.

Features:

• Output current: Iout=1.2A(average) / 3.2A (peak)
• Standby control to save power
• CW/CCW/short break/stop motor control modes
• Built-in thermal shutdown circuit and a low voltage detecting circuit
• All pins of the TB6612FNG broken out to 0.1″ spaced pins
• Filtering capacitors on both supply lines

Package Includes:

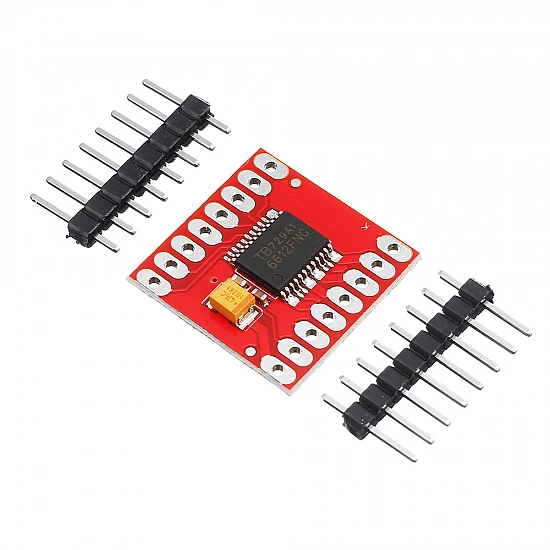

1 x TB6612FNG Ultra Small Dual DC Motor Driver Module.
