STM32F103C8T6 Development Board STM32 ARM Core Module
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
- Stock: In Stock
- Brand: Import Dukan
- SKU: ID-01-428
₹241
7 or more ₹214
30 or more ₹199
(Excluding 18% GST)

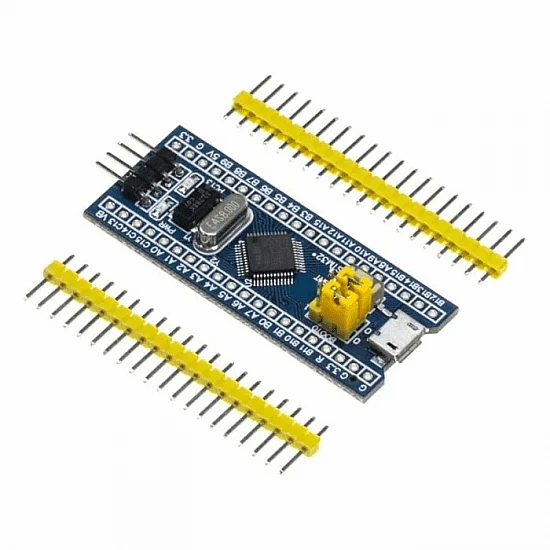

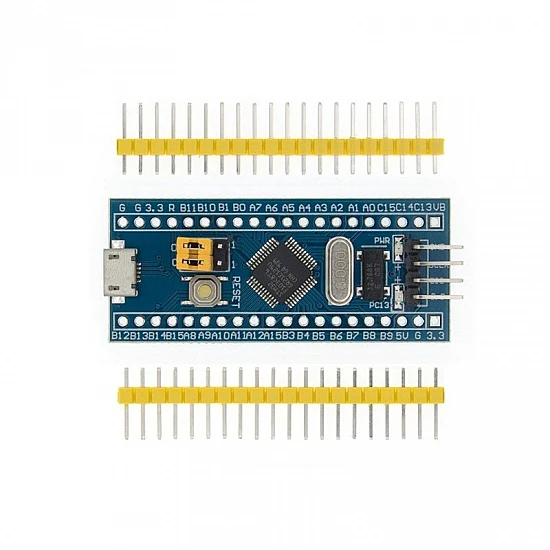

This is STM32F103C8T6 Development Board STM32 ARM Core Module. This board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F103C8T6.
Board is suitable for learners that want to learn the STM32 microcontroller with ARM Cortex-M3 32-bit core.
Features :
- 100% Brand new and high-quality STM32 Board
- 72MHz work frequency.
- 64K flash memory,
- 20K SRAM.
- 4-to-16 MHz crystal oscillator
- Internal 40 kHz RC
- 32 kHz oscillator for RTC with calibration
- 7-channel DMA controller
- 2 x 12-bit, 1μs A/D converters (up to 16 channels)
- Up to 2 x I2C interfaces (SMBus/PMBus)
- Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
- Up to 2 SPIs (18 Mbit/s)
- CAN interface (2.0B Active)
- Peripherals supported: timers, ADC, SPIs, I2Cs, and USARTs
- Reset(POR/PDR).
- Onboard the Mini USB interface, you can give the board power supply and USB communication.
- 2.0 to 3.6 V application supply and I/Os
Package Includes :
1 x STM32F103C8T6 Development Board STM32 ARM Core Module
Technical | |
Microcontroller | STM32F103C8T6 |
Clock Speed | 72MHz |
Core | ARM Cortex-M3 32-bit |
Flash Memory | 64K |
Operating Voltage | 2.0 to 3.6 V |
SRAM | 20K |
crystal oscillator | 4 to 16 MHz |
