- Stock: In Stock
- Brand: Import Dukan
- SKU: IDC-02-681
(Excluding 18% GST)

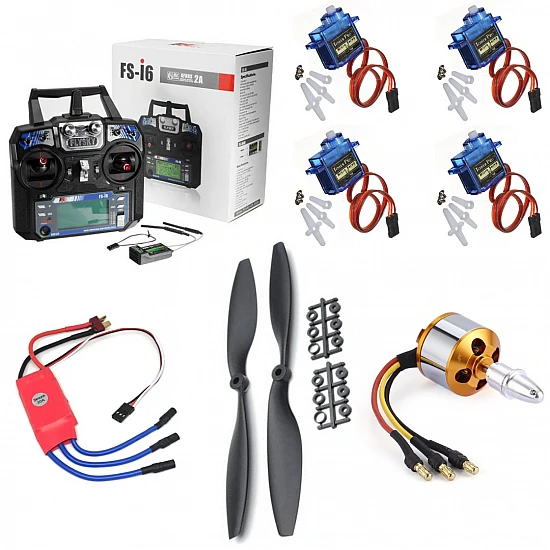

This RC Aeroplane Kit includes almost all parts for the basic RC Aeroplane with 6ch RX TX. It includes everything to make and fly your own RC Aeroplane. This Kit Provides a FlySky FS-i6 RC Transmitter with Receiver,1000kv Brushless motor,30A Simonk ESC, TowerPro SG90 Servo Motor, and a 1045 Propeller pair(CW+CCW).

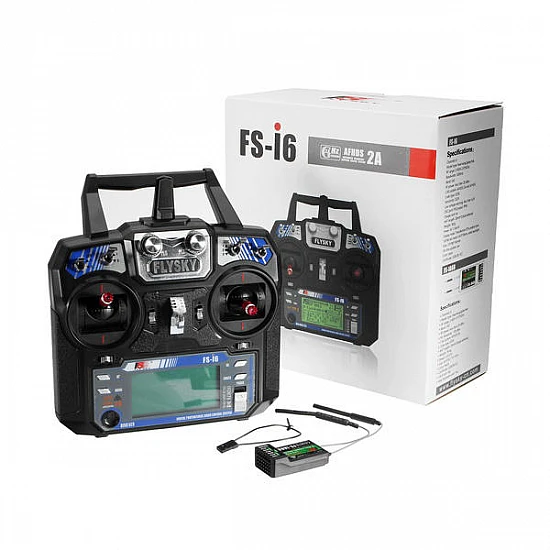

FlySky FS-i6 2.4G 6CH AFHDS RC Transmitter with FS-iA6 Receiver is a great low-cost entry-level 6-channel 2.4 GHz Transmitter and Receiver that uses solid and reliable Automatic Frequency Hopping Digital System spread spectrum technology. It also comes with an FS-iA6 6-channel receiver. Suitable for controlling Quadcopters, Multirotor, Heli, and Airplane.

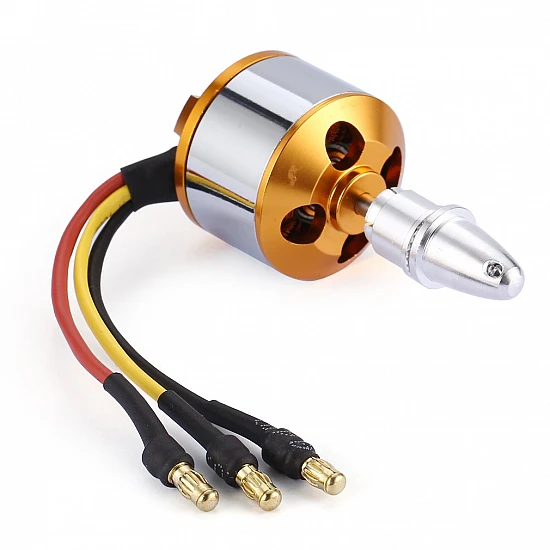

1000KV Brushless DC Motor is a brushless motor specifically made for RC planes, quadcopters, and multi-rotors. It is a 1000kV motor. It provides high performance, superpower, and brilliant efficiency.

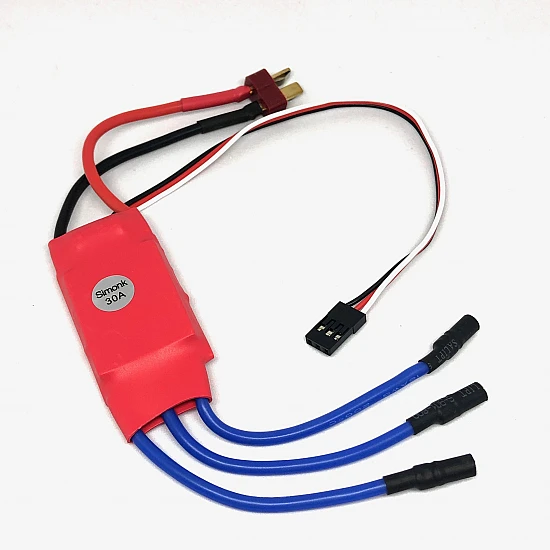

30A Simonk ESC Electronic Speed Controller can drive motors that consume up to 30A current. It can be used to control our brushless motors with a 2S-3S LiPo. The onboard BEC provides regulated 5V(2A max draw) to power the flight controller and other onboard modules.

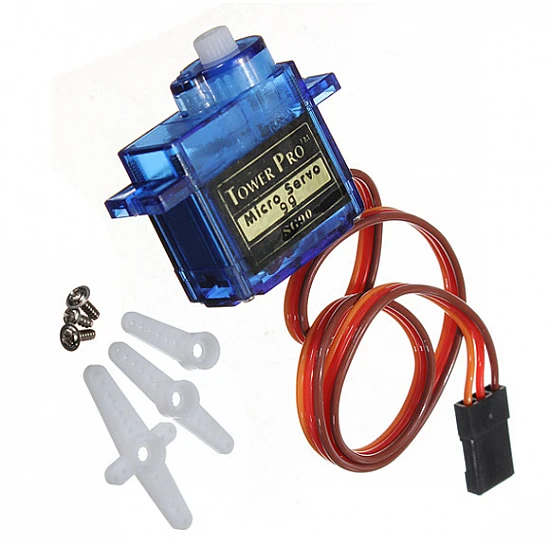

TowerPro SG90 Servo Motor is lightweight, high-quality, and lightning-fast. The servo is designed to work with almost all radio control systems. It is with excellent performance and high torque of 1.5 kg-cm gives you the freedom to use it for a variety of projects.

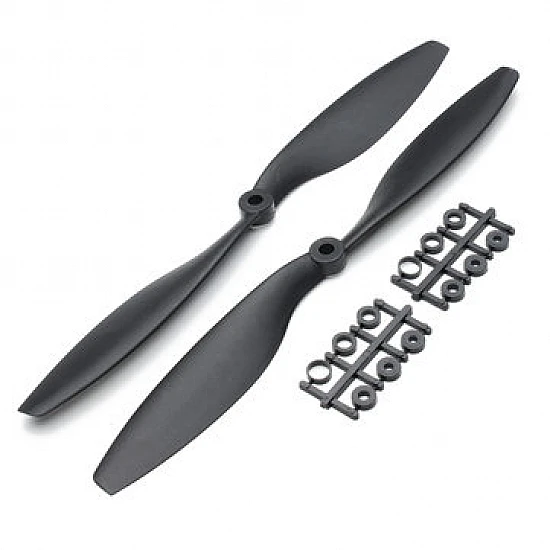

The 10x4.5 inch Propeller Pair (CW+CCW) is a set of counter-rotating RC aircraft propellers perfect for use in twin and multiple motor RC airplanes or coaxial RC helicopters. The length is 10 inches and the pitch is 4.5 inches per revolution.
Package Includes:
1 x Flysky FS-i6 2.4G 6CH TX-RX
1 x A2212 1000KV Brushless Motor For RC Airplane / Quadcopter
1 x 1045 Propeller 10in 10x4.5 For Drone
Oximeter | |
Dimension | 27.8x27 mm |
ESC | |
BEC | 2 A |
Batteries | 2-3 cells Li-Poly, OR 5-12 cells Ni-MH Ni-MH / Ni-Cd battery |
Constant Current | 30A (Max 40A less than 10 seconds) |
Input Voltage | 5.6V - 16.8V |
Motor | |
Batteries | 2-3 cell Li-Poly |
Current Capacity | 12A/60s |
Max Efficiency | 80% |
Max Efficiency Current | 4-10A (>75%) |
Model | A2212 |
No Load Current | 0.5A @10V |
Shaft Diameter | 3.17mm |
Propeller | |
Length | 10 inch |
Pitch | 4.5 inch |
Servo Motor | |
Dimensions (LxWxH) | 2.2 x 1.15 x 2.7 cm |
Model | TOWER PRO 9G MICRO SERVO MOTOR |
Operating Voltage | 4.8 - 6 V |
Transmitter And Receiver | |
Band | 142 |
Channels | 6 |
Frequency Range | 2.40-2.48GHz |
Model | FlySky FS-i6 6CH AFHDS Transmitter With FS-iA6B Receiver |
Size | Transmitter: 17.4 X 8.9 X 19 cm; Receiver: 4.7 x 2.62 x 1.5 cm |
