RC Aeroplane Kit ( Motor + ESC + Propeller + Servo + TX-RX)

RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller  + Servo + TX-RX)
RC Aeroplane Kit ( Motor + ESC + Propeller + Servo + TX-RX)
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹4,195
3 or more ₹3,776
10 or more ₹3,657

(Excluding 18% GST)

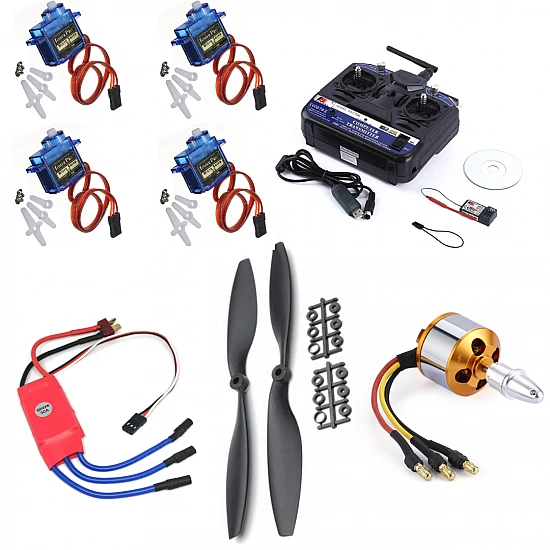

This RC Aeroplane Kit includes almost all parts for the basic RC Aeroplane with 6ch RX TX. It includes everything to make and fly your own RC Aeroplane. This Kit Provides a FlySky CT6B 6CH Transmitter with FS-R6B Receiver, 1000kv Brushless motor, 30A Simonk ESC, TowerPro SG90 Servo Motor, and a 1045 Propeller pair(CW+CCW).

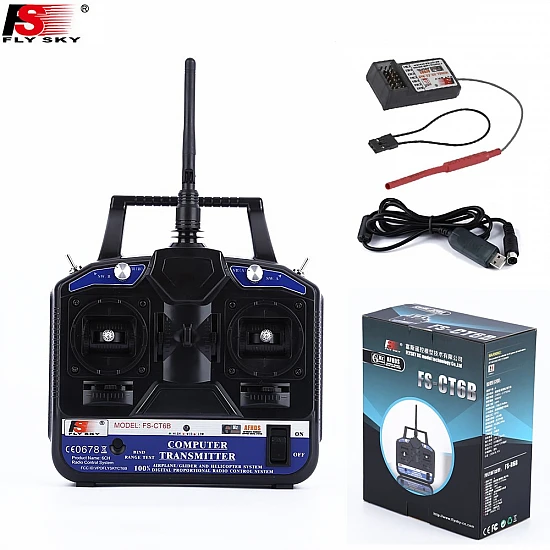

FlySky CT6B 6CH Transmitter with FS-R6B Receiver 2.4Ghz is the popular 6 Channel Radio CT6B manufactured by FlySky. CT6B FLYSKY 2.4GHZ 6CH TRANSMITTER is an entry-level 2.4 GHz radio system offering the reliability of 2.4 GHz signal technology and a receiver with 6 channels.

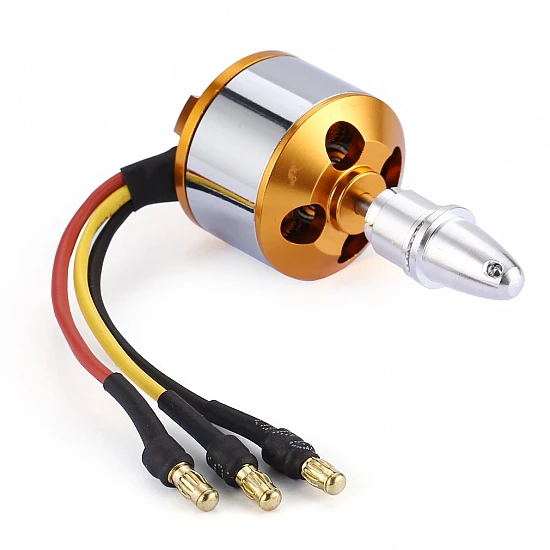

1000KV Brushless DC Motor is a brushless motor specifically made for RC planes, quadcopters, and multi-rotors. It is a 1000kV motor. It provides high performance, superpower, and brilliant efficiency.

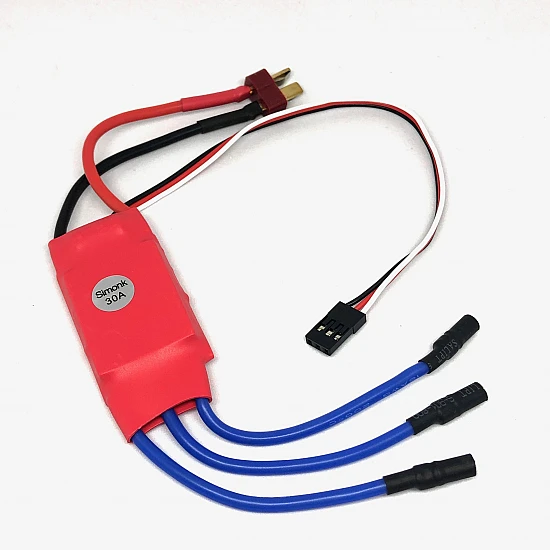

30A Simonk ESC Electronic Speed Controller can drive motors that consume up to 30A current. It can be used to control our brushless motors with a 2S-3S LiPo. The onboard BEC provides regulated 5V(2A max draw) to power the flight controller and other onboard modules.

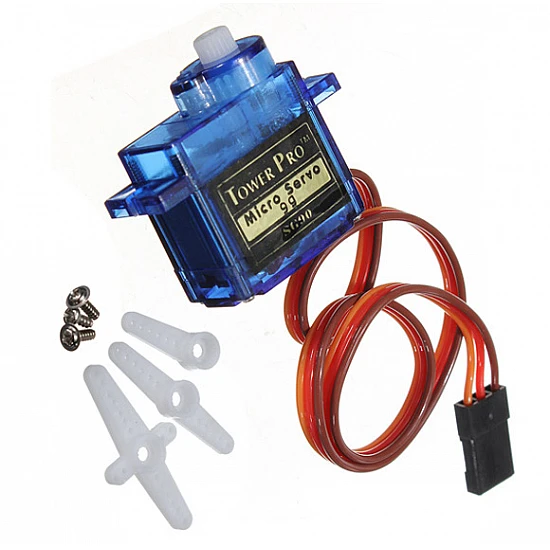

TowerPro SG90 Servo Motor is lightweight, high-quality, and lightning-fast. The servo is designed to work with almost all radio control systems. It is with excellent performance and high torque of 1.5 kg-cm gives you the freedom to use it for a variety of projects.

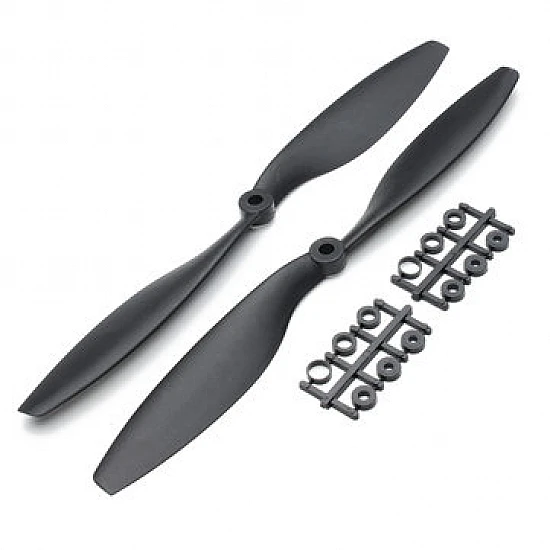

The 10x4.5 inch Propeller Pair (CW+CCW) is a set of counter-rotating RC aircraft propellers perfect for use in twin and multiple motor RC airplanes or coaxial RC helicopters.  The length is 10 inches and the pitch is 4.5 inches per revolution.

Package Includes:

1 x FLYSKY CT6B 6CH Remote Transmitter with Receiver

1 x A2212 1000KV Brushless Motor For RC Airplane / Quadcopter

1 x 30A Brushless ESC

1 x 1045 Propeller 10in 10x4.5 For Drone



4 x Tower Pro 9G Micro Servo Motor

Technical
Dimensions (LxWxH)

27.8x27 mm

ESC
BEC

2 A

Batteries

2-3 cells Li-Poly, OR 5-12 cells Ni-MH Ni-MH / Ni-Cd battery

Constant Current

30A (Max 40A less than 10 seconds)

Input Voltage

5.6V - 16.8V

Motor
Batteries

2-3 cell Li-Poly

Current Capacity

12A/60s

Max Efficiency

80%

Max Efficiency Current

4-10A (>75%)

Model

A2212

No Load Current

0.5A @10V

Shaft Diameter

3.17mm

Propeller
Length

10 inch

Pitch

4.5 inch

Servo Motor
Dimensions (LxWxH)

2.2 x 1.15 x 2.7 cm

Model

TOWER PRO 9G MICRO SERVO MOTOR

Operating Voltage

4.8 - 6 V

Transmitter And Receiver
Channels

6

Frequency Range

2.40 ~ 2.48 GHz

Model

FlySky FS-CT6B 6CH Radio Set System with RX FS-R6B receiver
