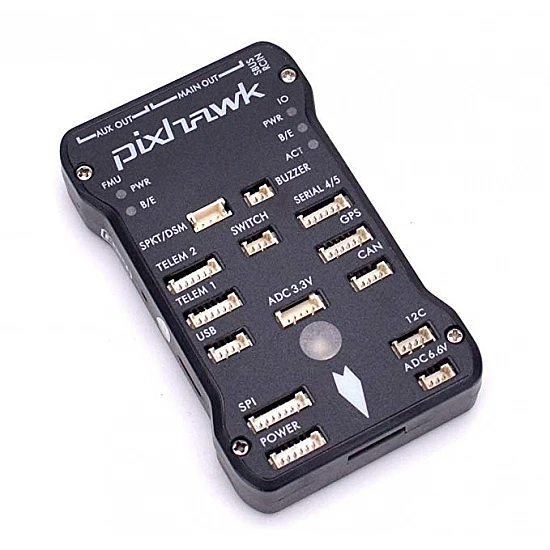

Pixhawk 2.4.8 PX4 32 Bit Flight Controller with Safety Switch and Buzzer for Drone High Quality
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
- Stock: In Stock
- Brand: Import Dukan
- SKU: ID-02-804
₹8,962
3 or more ₹8,181
10 or more ₹7,747
(Excluding 18% GST)
Characteristics:
- Compatible with Alexmos2.2 or firmware below, compatible with the newest firmware BruGi_050 German, standard Russian2.2 firmwareTips
- A new generation of strong input control 32-bit processor, a circuit board with PX4FMU + PX4IO
- (Download Mission Planner HERE)
Specifications:
- 32-bit Pixhawk PX4 Autopilot Open Code Flight Controller V2.4.8
- 2 bit 1.32 STM32F427 flash Cortex M4, with the floating-point hardware processing unit
- 2 main frequency: 256 K, RAM 168 MHZ
- 32-bit processor STM32F103 backup co
Sensors:
- L3GD20 3-axis 16-bit digital gyroscope
- LSM303D 14/3 Axis Accelerometer Magnetometer
- MPU6000 6-axis accelerometer / magnetometer
- MS5611 high precision barometer
Interface:
- 5 UART 1 High Voltage compatible, 2 with hardware flow control
- 2 CAN
- DSM / DSM-X Spektrum compatible satellite receiver input
- SBUS input and output compatible
- PPM signal input
- RSSI (PWM or input voltage)
- I2C
- SPI
- 3.3 and 6.6 VADC inputs
- external US MICRO

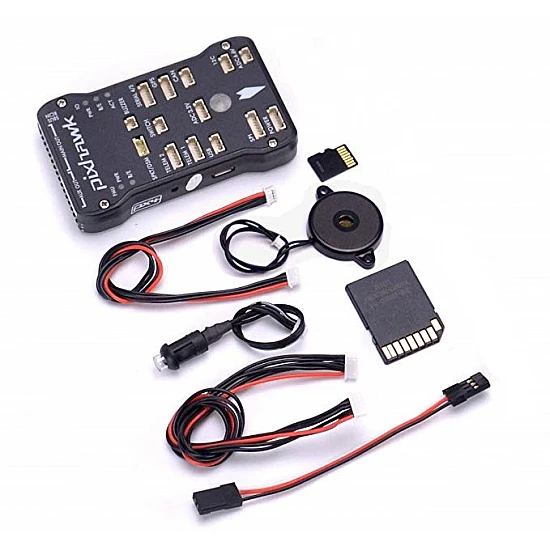

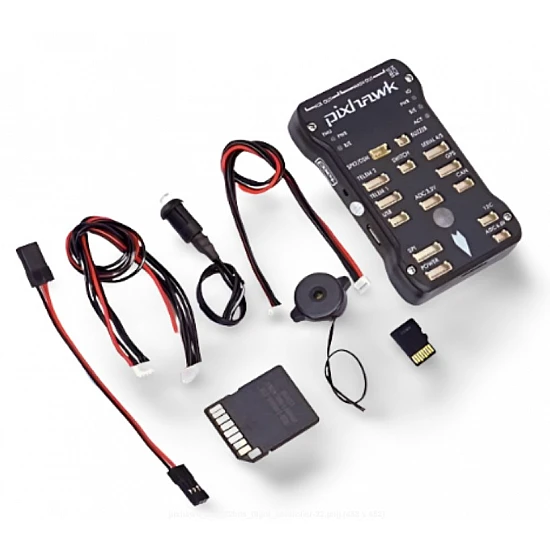

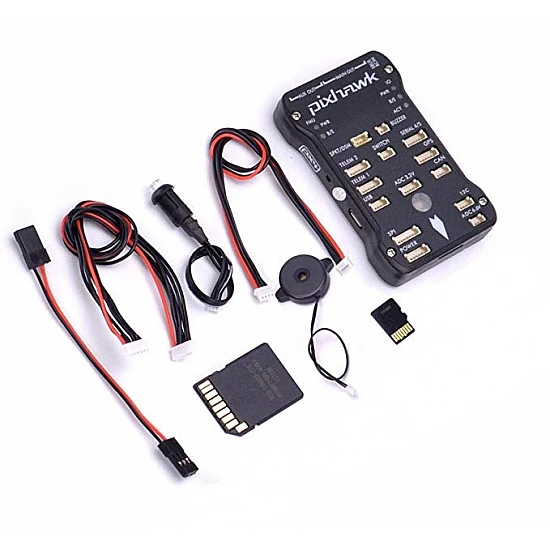

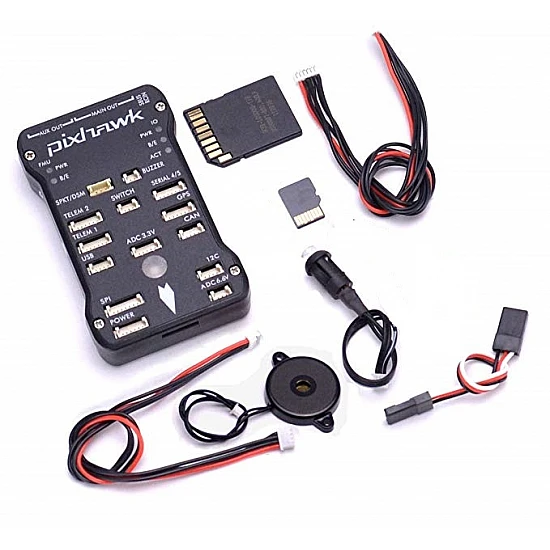

Package includes:
1 X 2.4.8 Pixhawk main control with shell
1 X Safety switch
1 X Buzzer
1 X Memory Card
Connection Wire
Technical | |
Processor | STM32F427 |
Accelerometer | LSM303D |
Compatibility | Quadcopter, Hexacopter, plane, Helicopter, Octacopter, Rover, Antenna, Custom. |
Gyroscope | L3GD20 |
RAM Size | 256k |
