Pixhawk PX4 Autopilot 2.4.8 32 Bit Flight Controller kit

Features:
1. The advanced 32-bit ARM CortexM4 high-performance processors can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;

(Download Mission Planner HERE)

Specifications:

Microprocessor

• 32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit
• frequency: 168MHZ, 256K RAM
• 32 STM32F103 backup coprocessor

Sensor

• L3GD20 3-axis digital gyroscope 16
• LSM303D 3-axis accelerometer 14 / Magnetometer
• MPU6000 6-axis accelerometer / magnetometer
• MS5611 precision barometer

Interface

• 5 high voltage compatible UART 1, 2 with hardware flow control
• 2 CAN
• Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
• Futaba SBUS compatible inputs and outputs
• PPM Signal Input
• RSSI (PWM or voltage) Input
• I2C
• SPI
• 3.3 and 6.6VADC input
• External MICRO USB Interface

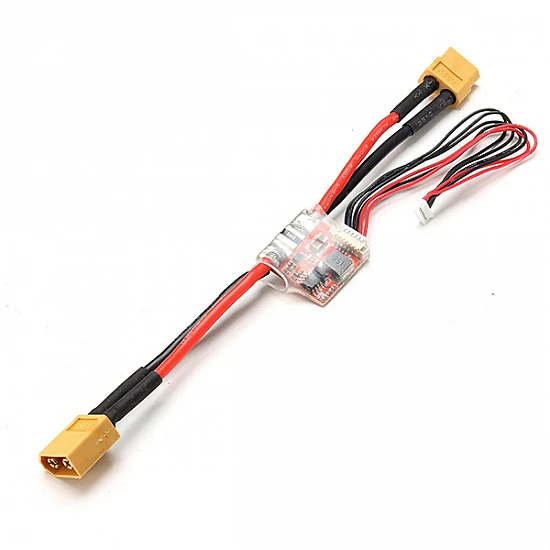

Power module :

• The APM 2.6 Power Module is a simple way of providing your APM 2.6 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 6S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.

Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power servos. Use your aircraft\'s own ESC/BEC for that.

Specifications:

• Max input voltage: 28V
• Max current sensing: 90A
• Voltage and current measurement configured for 5V ADC
• Switching regulator outputs 5.3V and 3A max
• 6-pos DF13 cable plugs directly to APM 2.5\'s \'PM\' connector

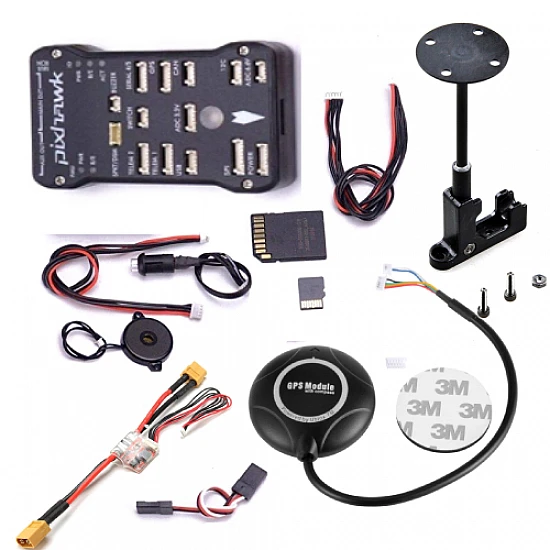

Packing list:

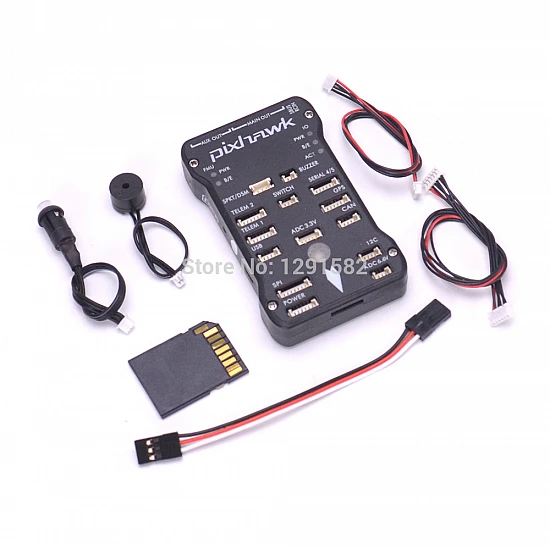

• Pixhawk 2.4.8  32bit ARM Flight Controller x 1
• Safety button x 1
• Buzzer x 1
• Micro SD TF card  x1

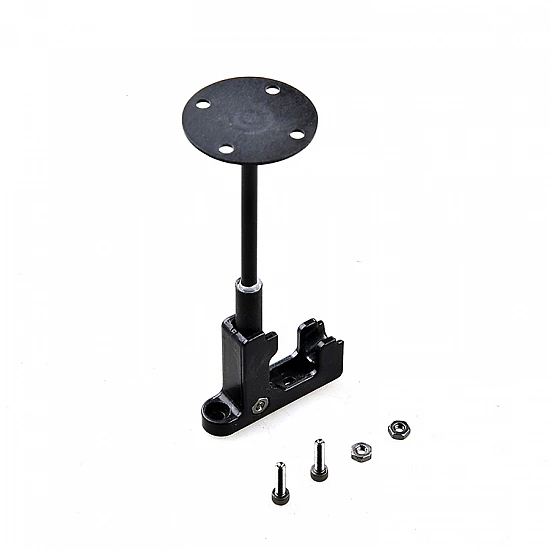

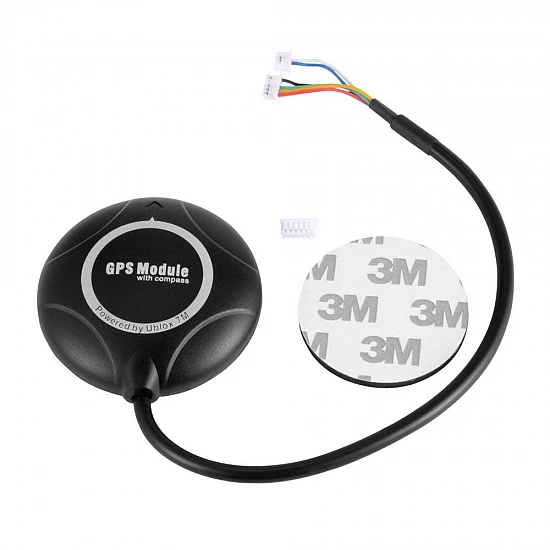

• M7N GPS with GPS holder× 1
• Cables
• power module x 1

NOTE: Before connect with the computer, you need to insert the SD card first , then flash the program, otherwise the LED indicator will not light up.
Please make sure you read these before you use.
