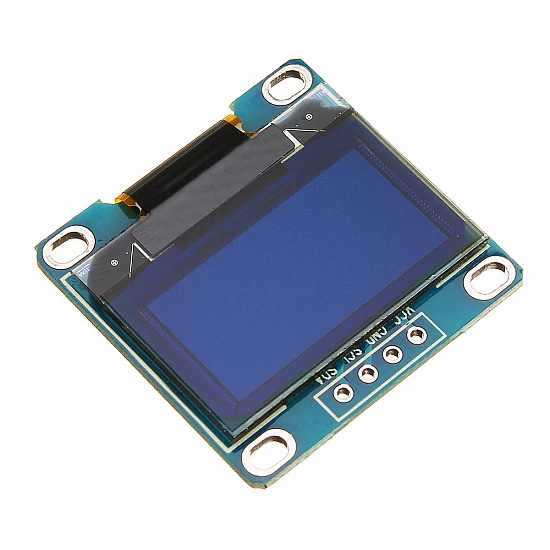

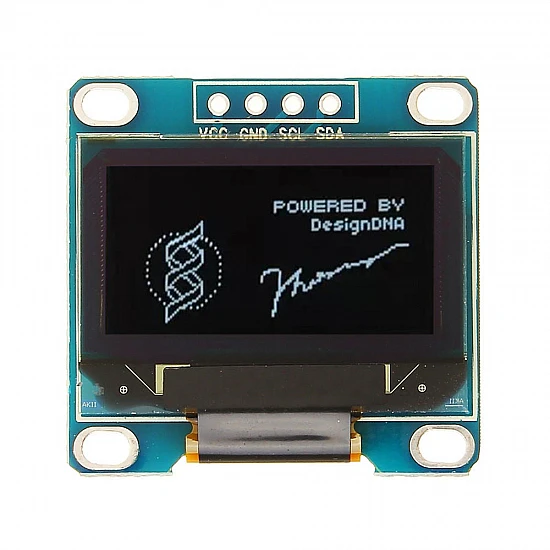

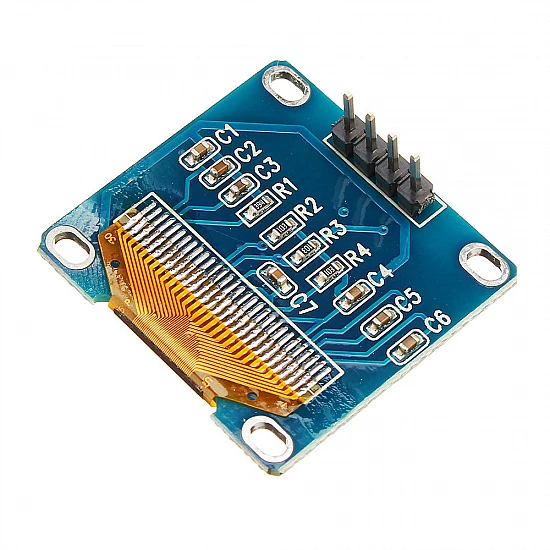

OLED 0.96 inch 4 pin I2C 128 X 64 DISPLAY MODULE - Blue

OLED 0.96 I2C 128 X 64 DISPLAY MODULE - Sensor - Arduino
OLED 0.96 I2C 128 X 64 DISPLAY MODULE - Sensor - Arduino
OLED 0.96 I2C 128 X 64 DISPLAY MODULE - Sensor - Arduino
OLED 0.96 I2C 128 X 64 DISPLAY MODULE - Sensor - Arduino
OLED 0.96 I2C 128 X 64 DISPLAY MODULE - Sensor - Arduino
OLED 0.96 I2C 128 X 64 DISPLAY MODULE - Sensor - Arduino
OLED 0.96 inch 4 pin I2C 128 X 64 DISPLAY MODULE - Blue
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹175
7 or more ₹163
30 or more ₹157

(Excluding 18% GST)

This I2C 0.96" OLED Display Module is an OLED 128×64 dot matrix display module with I2C Interface. It is perfect when you require an ultra-small display for projects. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.

Feature:

  • OLED Driver IC: SSD1306
  • Resolution: 128 x 64
  • Visual Angle: >160°
  • Input Voltage: 3.3V ~ 6V
  • Compatible I/O Level: 3.3V, 5V
  • Only Need 2 I/O Port to Control
  • Full Compatible Arduino,
  • Low power consumption
  • No need for any backlight
  • Self-illuminating display
  • offers a large viewing angle

Package Content:

1 x 0.96 Inch White SPI OLED Display Module

Technical
Driver IC

SSD1306

Interface Type

IIC interface

Operating Temperature Range

-40° to 70° C

Operating Voltage

3.3V-5V

Resolution

128 x 64 Pixels

Length

2.75 cm

Height

1.1 cm

Width

2.75 cm
