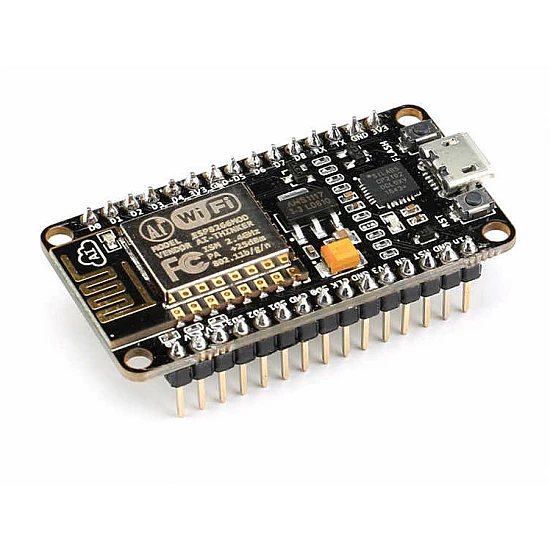

NodeMcu ESP8266 CP2102 WIFI Development Board

NodeMCU ESP-8266 WIFI Board CP2102. The Development Kit based on ESP8266 integrates GPIO, PWM, IIC, 1-Wire, and ADC all in one board. Power your development in the fastest way combines with NodeMCU Firmware! R2 version had CP2102 USB-TTL instead, larger current support, the slim board can put on a breadboard.

Specifications and Features:

• CP2102 Serial / USB Chip
• 11 b/g/n Wi-Fi Direct (P2P), soft-AP
• Integrated TCP/IP protocol stack
• 4MB Flash Memory
• +19.5dBm output power in 802.11b mode
• ESP-12E Processor
• Easy access to the GPIO pins for easy prototyping
• Integrated low power 32-bit CPU
• SDIO 1.1 / 2.0, SPI, UART
• Integrated TR switch, balun, LNA, power amplifier, and matching network
• Integrated PLLs, regulators, DCXO, and power management units
• Embeds logic level converter circuits
• Easy to use breadboard friendly form factor
• Voltage Regulator / Converter, excellent DC to DC conversion, super-efficient
• USB:  Micro USB port for power, programming, and debugging
• Power:  5V via micro USB port
• Misc:  Reset and Flash buttons
• Headers:  2x 2.54mm 15-pin header with access to GPIOs, SPI, UART, ADC, and power pins
• Dimensions – 49 x 24.5 x 13mm

Package Includes:

1 x NodeMcu ESP8266 CP2102 WIFI Development Board.
