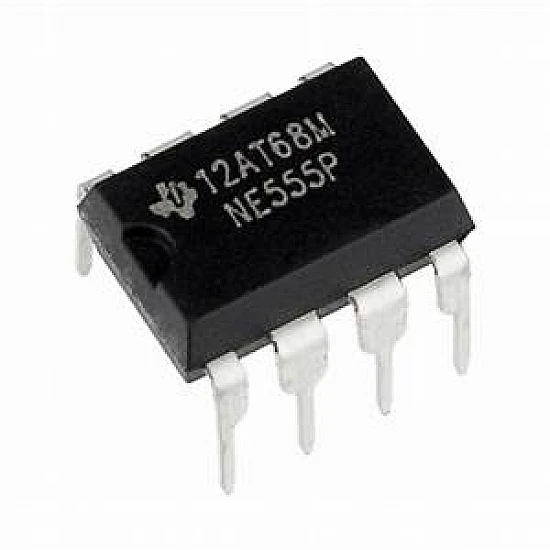

NE555 Timer IC | 555 Timer IC

This is a common 555 timer IC. A classic for all of those first-year circuits projects where you need to blink an LED, generate tone, and thousands of other great beginning projects. Google around for a huge list of resources and example projects.

specification:-

• Package/Case                                   :-      PDIP-8

• Minimum Supply Voltage:-      4.5 V

• Maximum Supply Voltage:-      16 V

• Product Type:-      Timers & Support Products

• Product Series                             :-      NE555

• No. of Timers/Counters:-     1

• Operating Temperature Range:-     0ºC to 70ºC

• Dimensions (mm) LxWxH            :-      9.81 x 4.57 x 6.35

• Mounting Style                            :-      Through Hole
•

Feature:-

• Adjustable Duty Cycle
• Timing From Microseconds to Hours
• Astable or Monostable Operation
•

Package Includes:-

• 1 x NE555P PDIP-8 Timer
