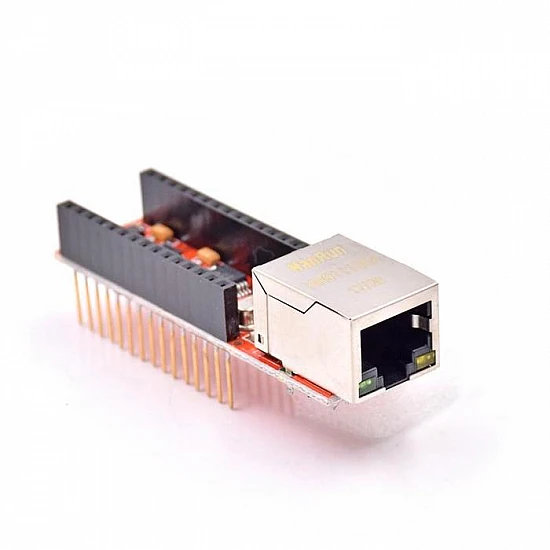

Nano V3 Ethernet Shield

This Nano Ethernet Shield allows you to connect the Arduino Nano to a network. It is assembled with long stackable pin headers, and don’t need to solder the headers separately.

The Nano Ethernet Shield is based on the ENC28J60 Ethernet chip which provides a network (IP) stack capable of both TCP and UDP. Use the Ethernet library to write sketches that connect to the internet using the add-on module.

ENC28J60 is a 10BASE-T stand-alone Ethernet unit with on board MAC & PHY, 8 Kbytes of Buffer RAM, and an SPI serial interface for 3.3V and 5V logic. With small size the Nano Ethernet Shield minimizes complexity, board space, and cost. Target applications include VoIP, Industrial Automation, Building Automation, Home Control, Security, and Instrumentation.

Shield use power 5V  from Nano board and convert to 3.3V (on shield have 3.3V LDO). With this Ethernet Shield, your Arduino Nano board can be used to connect to the internet.

Features:

• Controller: Microchip's ENC28J60 ethernet / HR911105A
• Works as server or client
• Comes with efficient library and examples
• Direct plug puzzle board, NO soldering needed.

Package Includes:

1 x Nano Ethernet Shield
