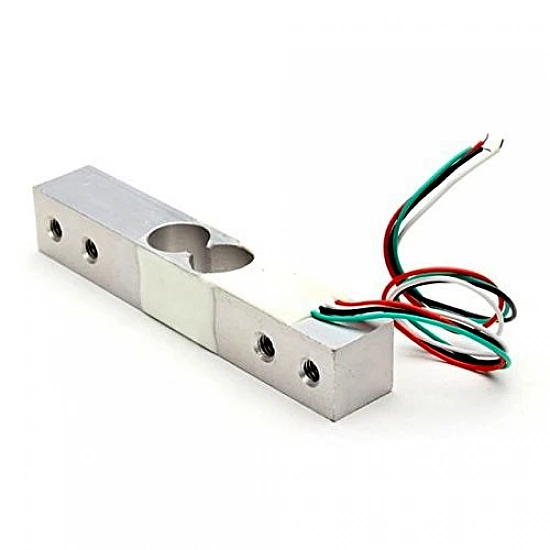

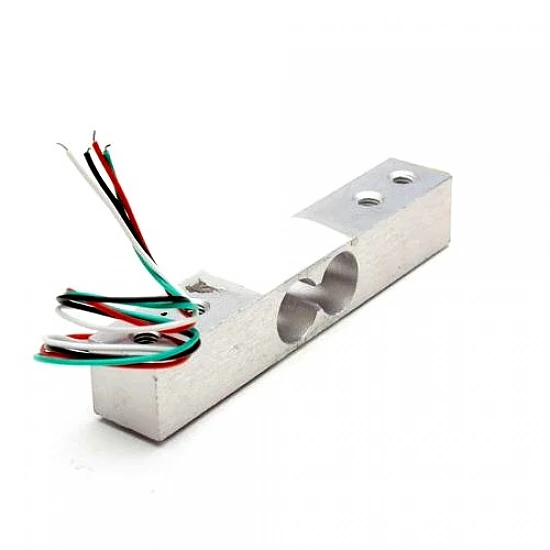

10KG Load Cell Mini Weight Sensor
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
- Stock: In Stock
- Brand: Import Dukan
- SKU: ID-01-576
₹103
7 or more ₹97
30 or more ₹93
(Excluding 18% GST)
This load cell (sometimes called a pressure gauge) can translate up to 10kg of stress (force) into an electric signal. Each load cell can measure the electrical resistance that changes in response to, and proportionality of, the strain (e.g. pressure or force) applied to the pub.
With this gauge, you will have the ability to tell just how heavy an object is if an item's weight varies over time, or in the event that you merely must sense the presence of an object by measuring load or strain applied to a surface.
Features:
- Rated output(MV/V): 2.0±0.15
- Load cell material: Aluminium
- Accuracy class: C2
- Maximum number of laod cell verification intervals: 2000
- Minimum number of laod cell verification intervals: EMax/5000
- Combined error(%RO): <±0.030
- Creep(%RO/30min): 0.03
- Zero balance(%RO): 1.0
- Temperature effect on sensitivity: 0.0016
- Temperature effect on zero: 0.003
- Safe overload(%RO): 150
- Ultimate overload(%RO): 200
- Input resistance(O): 402±6
- Output resistance(O): 350±3
- Recommended excitation voltage(V): 10~15
- Compensated temperature range(°C): -10~+40
- Operating temperature range(°C): -35~+80
- Connecting cable: ø4.2x350mm
- Method of connecting wire: Red(+),Black(-),Green(+),White(-)
Package Includes :
1 x Load Cell Mini 10KG Weight Sensor
Technical | |
Accuracy class | C2 |
Connecting cable | ø4.2x350mm |
Creep | 0.03 (%RO/30min) |
Method of connecting wire | Red(+),Black(-),Green(+),White(-) |
Operating Temperature Range | -35 ~ 80 °C |
Zero balance | 1.0 (%RO) |
Material | Aluminum |
Length | 8 cm |
Height | 1.27 cm |
Width | 1.27 cm |
