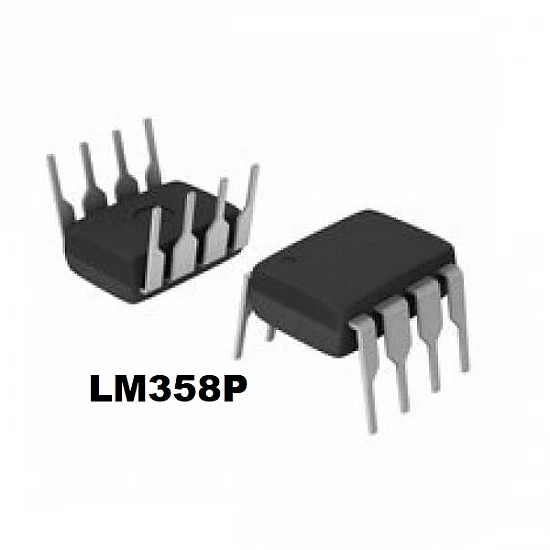

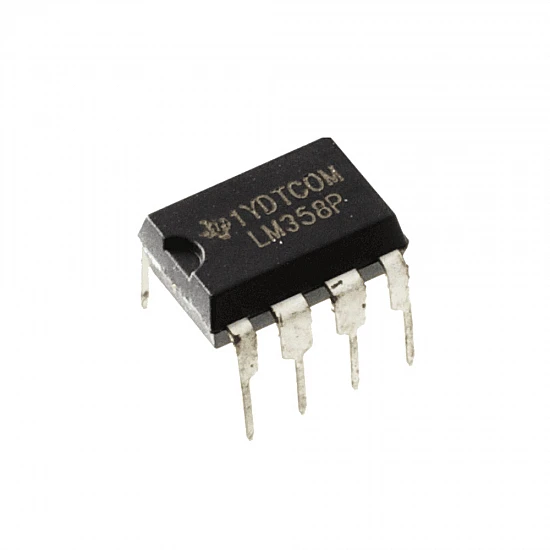

LM358 IC Low Power Dual Operational Amplifier Op Amp IC

DESCRIPTION:-

This IC LM358 is 8-pin IC. These devices consist of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages. Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground. Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V (26 V for LM2904). Open-Loop Differential Voltage Gain is 100 dB.

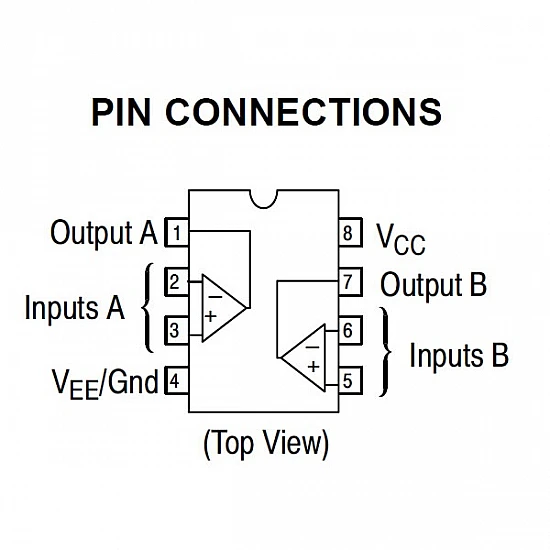

LM358 Pin Configuration  :-

Datasheet: Download

• Integrated with two Op-Amps in a single package
• Wide power supply Range
• Singe supply – 3V to 32V
• Dual supply – ±1.5V to ±16V
• Low Supply current – 700uA
• Single supply for two op-amps enables reliable operation
• Short circuit protected outputs
• Operating ambient temperature – 0˚C to 70˚C
• Soldering pin temperature – 260 ˚C (for 10 seconds – prescribed)
• Available packages: TO-99, CDIP, DSBGA, SOIC, PDIP,  DSBGA
•

• 1 X  LM358 IC
