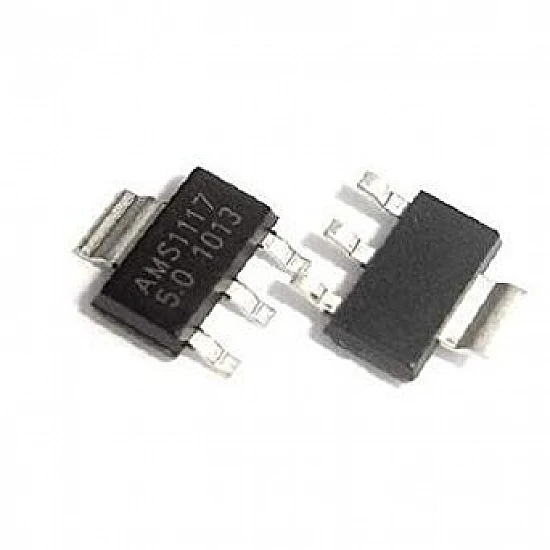

AMS1117 5 Volt SOT223 Voltage Regulator IC

Pin Configuration

• Fixed/Adjustable 3-terminal Linear voltage regulator
• Fixed Voltage type:  5V
• Output current is 800mA
• In-built Current Limiting and thermal protection.
• Operating junction temperature is 125°C
• SOT223 Package

Where to use LM1117 IC?

• Just like the famous 7805 and LM317, the LM1117 is another Linear Voltage regulator. It is known for its small form factor since it is available as a DCY Package (SMD Component). There are many types of LM1117, the fixed types provide a fixed output voltage of 1.8V, 2.5V, 3.3V or 5V and the variable voltage regulator can have a variable voltage from 1.25V to 13.8V.

Applications:

• Used for Positive voltage regulations
• Variable power supply
• Current limiting circuits
• Reverse polarity circuits
• Commonly used in Desktop PC, DVD and other consumer products
• Used in motor control circuits
• So if you are looking for SMD component voltage regulator then this IC might be the right choice for you.

Datasheet: Download

Package Content:

1 x AMS1117 5Volt SOT223  Voltage Regulator IC
