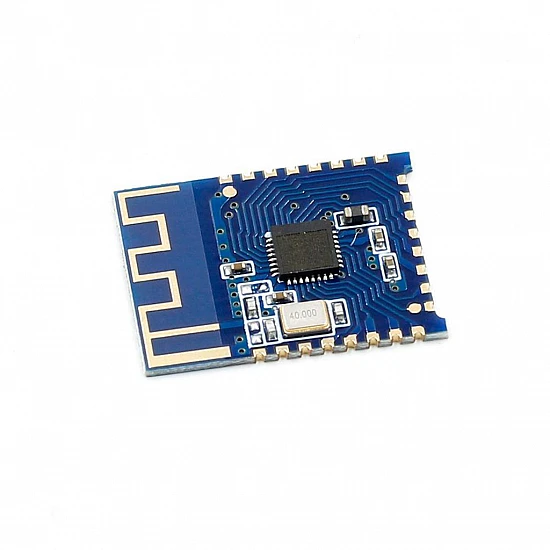

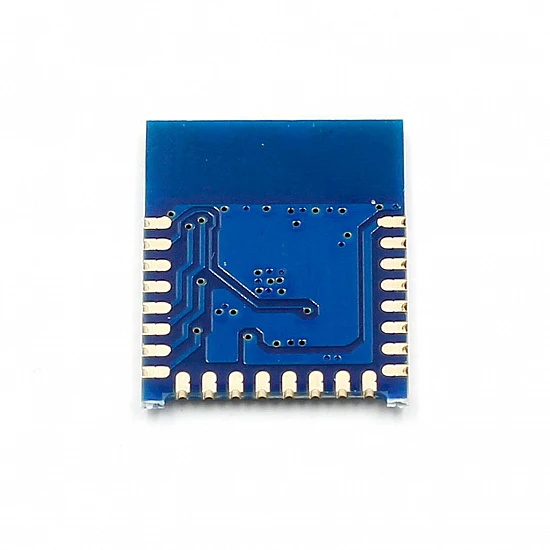

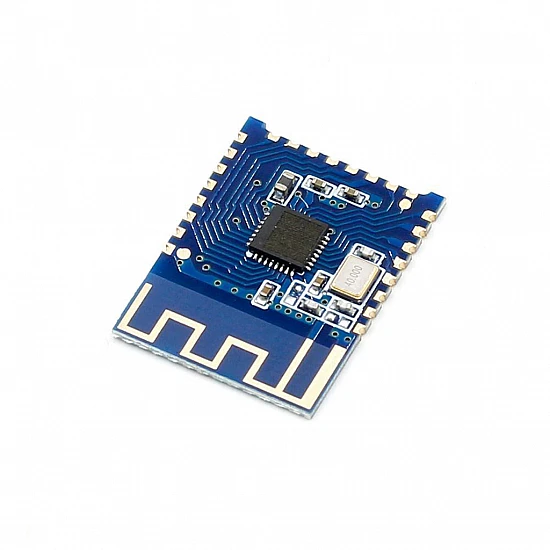

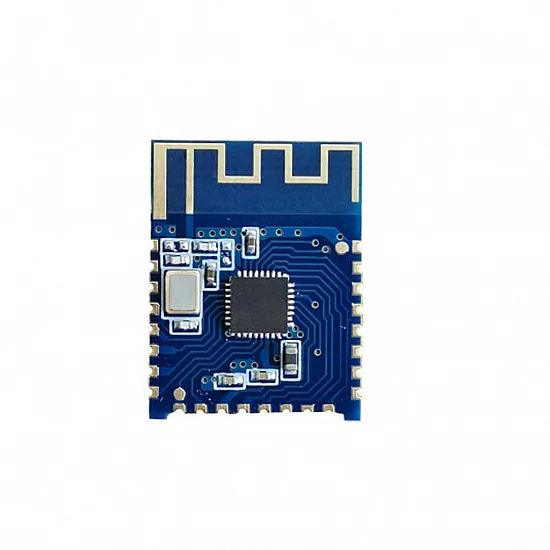

JDY-23 Bluetooth 5.0 Transparent Transmission Module

This Product is available in Ahmedabad - India Warehouse .

Approx Delivery Time is 2-5 Days.

Stock: In Stock
Brand: Import Dukan
SKU: ID-01-586

Based on 0 reviews. - Write a review

₹108

7 or more ₹103

30 or more ₹101

(Excluding 18% GST)

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

JDY-23 Bluetooth 5.0 Transparent Transmission Module adopts an imported original chip design, supports users to modify the device's name, baud rate, and other commands through AT command. The maximum transmission power is 4db and the maximum transmission distance is 60 meters.

It is based on the Bluetooth 5.0 protocol standard, the working frequency band is 2.4GHZ range, and the modulation mode is GFSK.

Features:

Model: JDY-23
Convenient and Easy to use.
It has a built-in PCB antenna

Package Includes:

1 x JDY-23 Bluetooth 5.0 Transparent Transmission Module

Technical
Model	JDY-23
Antenna Type	Built-in PCB antenna
Bluetooth Version	BLE 5.0 (Compatible with BLE4.0, BLE4.2)
Communication Interface	UART
Operating Temperature Range	-40°C to 80°C
Receiving Sensitivity	-97dbm
Transmission distance	60 Meters
Transmit Power	4 db
Working Frequency	2.4 G
Working Voltage	1.8V – 3.6V
Length	20 mm
Height	1.5 mm
Width	15 mm
