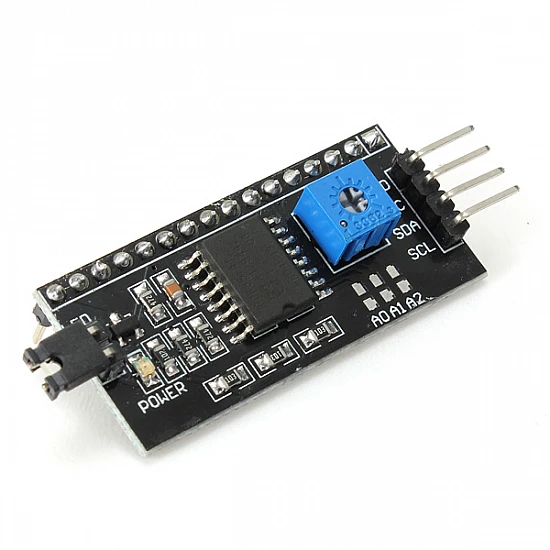

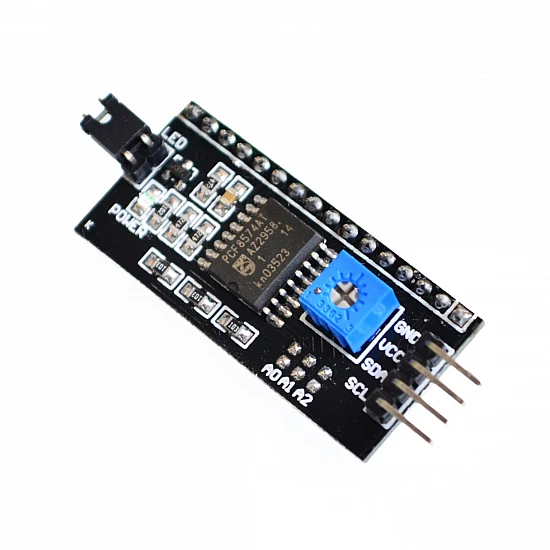

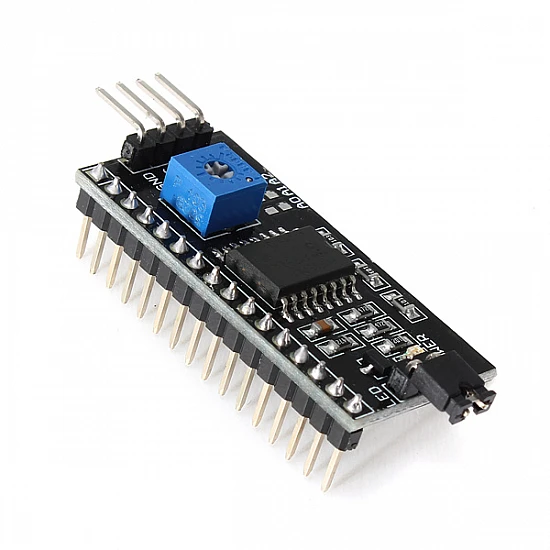

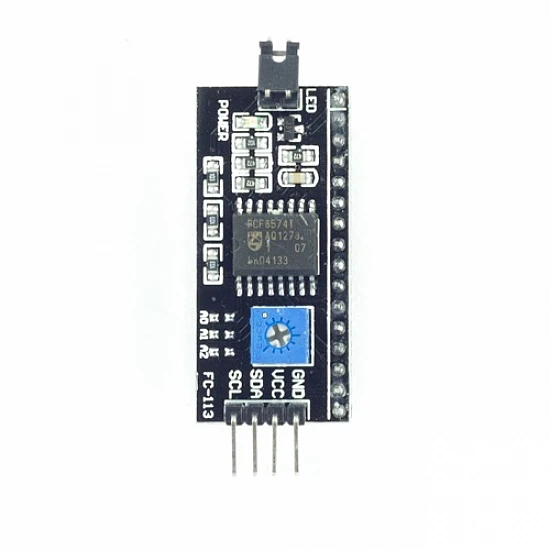

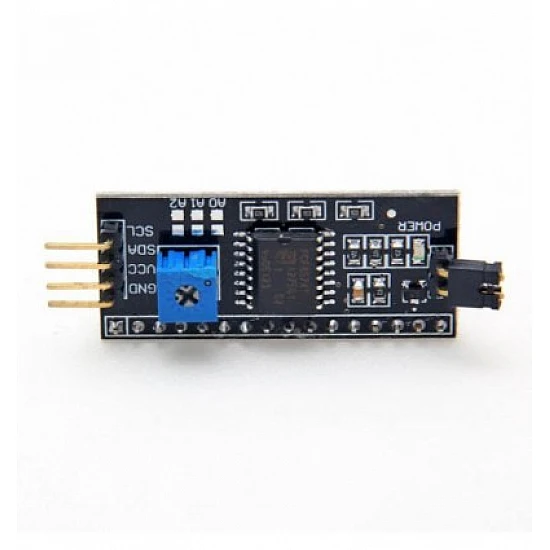

IIC/I2C Serial Interface Adapter Module

IIC/I2C Interface Adapter Module is used for 16×2 LCD Display. It uses the PCF8574T IC chip which converts I2C serial data to parallel data for the LCD display. Also, this interface module simplifies connecting an Arduino to a 16×2 Liquid Crystal display using only 4 wires.

Specifications and Features:

• Can have 8 modules on a single I2C bus (change address via solder jumpers)address, allowing.
• Operating Voltage: 5V
• Backlight and Contrast is adjusted by potentiometer
• Serial I2C control of LCD display using PCF8574
• Come with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable
• Compatible for 16x2 LCD
• This is another great IIC/I2C/TWI/SPI Serial Interface.
• With this I2C interface module, you will be able to realize data display via only 2 wires.

Package Includes:

1 x IIC/I2C Serial Interface Adapter Module
