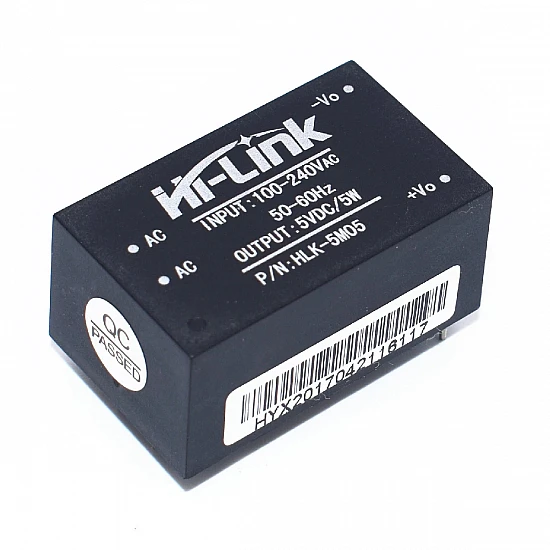

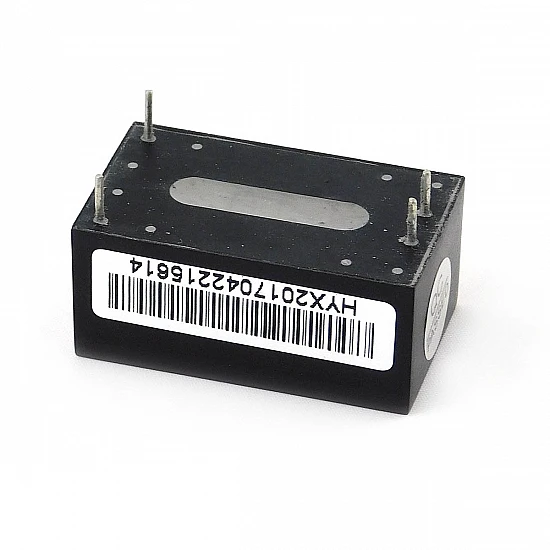

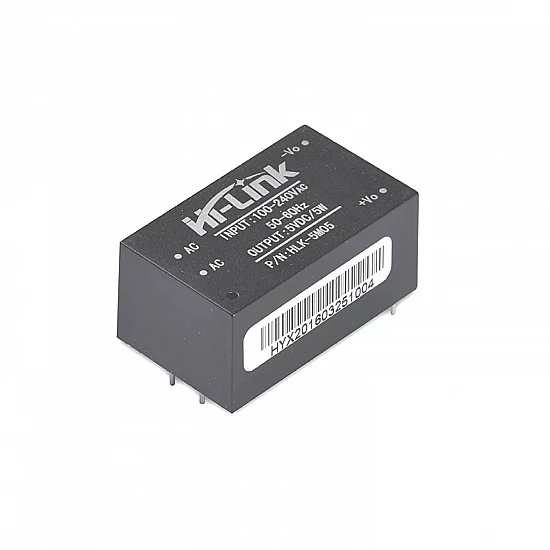

HLK-5M05 5V/5W Switch Power Supply Module

HLK-5M05 5V/5W Switch Power Supply Module is a plastic enclosed PCB mounted isolated switching step-down power supply module. It can supply 5V DC from  120V AC – 230V AC and has a power rating of 5 Watt. This makes it perfect for small projects that need a 5 volt supply from mains. This power supply module replaces lots of parts from the traditional power supply like diodes, voltage regulators, and transformers. Therefore there are many advantages to these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.

This Power Supply Module voltage source is a switching source, so you do not have to worry about fluctuations in the voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take. It is widely used in a smart home, automation and control, communication equipment, instrumentation, and other industries.

Features :

• Meet UL, CE requirements,
• Ultra-thin, ultra-small
• All voltage input (AC: 90 ~ 264V)
• Low ripple and low noise
• Output overload and short circuit protection
• High efficiency, high power density
• The product is designed to meet the requirements of the EMC and Safety Test
• Low power consumption, environmental protection, no-load loss <0.1W

Environmental conditions:

• Technical indicators: Single bit
• Working temperature: – 20-60 +degree
• Storage temperature: + 80-40 -degree
• Relative humidity: 5-95%
• The cooling way: Natural cooling
• The atmospheric pressure: 80-106Kpa
• The altitude: 2000M or less.

Package Includes:

1 x HLK-5M05 5V/5W Switch Power Supply Module.
