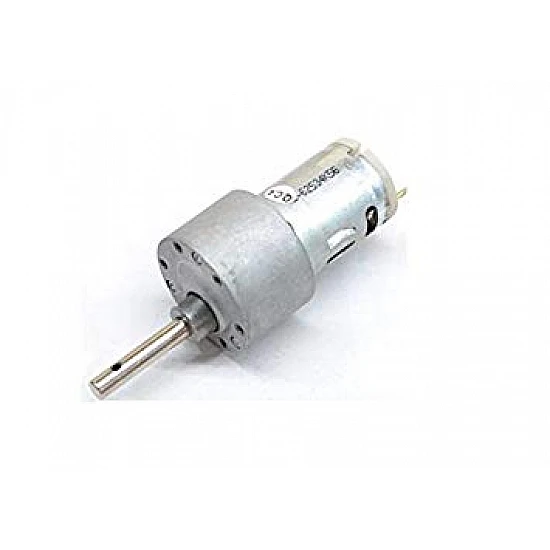

100RPM High Torque Side Shaft DC Metal Geared Johnson Motor

100 RPM 12V DC Johnson high torque geared motors for robotics applications. It gives a massive torque of 35Kgcm. The motor comes with metal gearbox and off-centered shaft.

Specification :

• Motor Type : High Torque Side Shaft Metal Gearedbox Motor.
• Rated Voltage : 12V DC.
• Rated RPM  : 100
• Torque : 35Kgcm
• Weight : 180gm
• No Load Current  : 800mA (Max.)
• Load Current : 7.5A (Max.)
• Shaft Diameter : 6mm (with M3 thread hole.)
• GearBox Diameter : 37mm
• Shaft Length : 30mm
• Motor Diameter
• 28.5mm

Features

• Easy to connect with Pully, Wheel, and rotary with M3 thread hole.
• Motor and Gearbox are repairable.
• Long Gearbox shaft provide disclosement with machine application.
• It provides very high torque, applicable in spindle motor also
