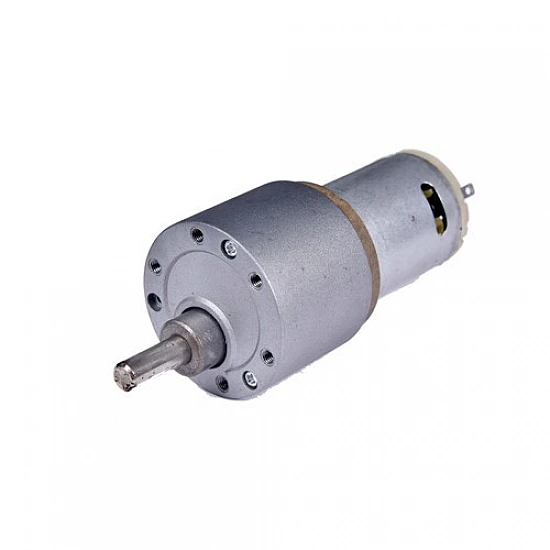

60RPM High Torque Side Shaft DC Metal Geared Johnson Motor

Specification :

• Motor Type : High Torque Side Shaft Metal Gearedbox Motor.
• Rated Voltage : 12V DC.
•  RPM : 60
• Torque  : 38 Kgcm
• Weight : 180gm
• No Load Current  : 800mA (Max.)
• Load Current :7.5A (Max.)
• Shaft Diameter : 6mm (with M3 thread hole.)
• GearBox Diameter : 37mm
• Shaft Length : 30mm
• Motor Diameter : 28.5mm
• Motor Length : 63mm (Without Motor Shaft.)

Features :

• Easy to connect with Pully, Wheel, and rotary with M3 thread hole.
• Motor and Gearbox are repairable.
• Long Gearbox shaft provide disclosement with machine application.
• It provides very high torque, applicable in spindle motor also.

Package Content :

1 X Gear Motor
