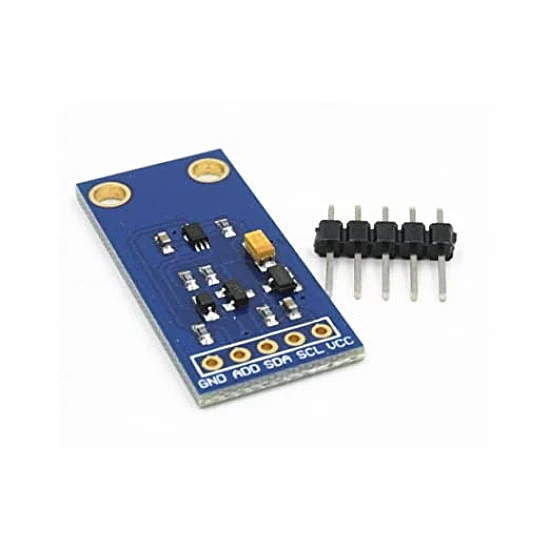

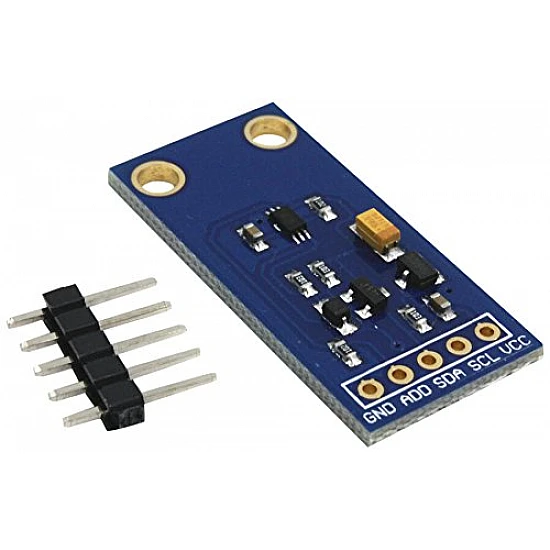

GY-30 BH1750 Digital Light Intensity Sensor Module

GY-30 BH1750 Digital Light Intensity Sensor Module
GY-30 BH1750 Digital Light Intensity Sensor Module
GY-30 BH1750 Digital Light Intensity Sensor Module
GY-30 BH1750 Digital Light Intensity Sensor Module
GY-30 BH1750 Digital Light Intensity Sensor Module
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹68
10 or more ₹66
50 or more ₹65

(Excluding 18% GST)

BH1750 module is a digital ambient light sensor, IIC I2C communication. Good for Arduino light detection. It is a  light intensity sensor breakout board with a 16 bit AD converter built-in which can directly output a digital signal, there is no need for complicated calculations. This is more accurate and easier to use a version of the simple LDR which only outputs a voltage that needs to be calculated in order to obtain meaningful data.

With the BH1750 Light Sensor intensity can be directly measured by the Luxmeter, without needing to make calculations. The data which is output by this sensor is directly output in Lux (Lx). When objects which are lighted in homogeneous get the 1 lx luminous flux in one square meter, their light intensity is 1lx. Sometimes to take good advantage of the illuminant, you can add a reflector to the illuminant. So that there will be a more luminous flux in some directions and it can increase the illumination of the target surface.

Features:

  • Close to the spectral characteristics of visual acuity
  • Sensor built-in : 16 bitAD converter
  • Direct digital output, bypassing the complex calculation, bypassing the calibration
  • Don't distinguish between ambient light
  • widely use to 1-lux high precision measurement
  • Low Current by power down function * 50Hz / 60Hz Light noise reject-function
  • Light source dependency is little. ( ex. Incandescent Lamp. Fluorescent Lamp. Halogen Lamp. White LED. Sun Light)
  • Small measurement variation ( +/- 20%).

Package Includes:

1 x  Digital Light Intensity Sensor Module

Technical
IC Chip

BH1750

Interface Type

I2C

Light Range

0-65535 lx

Power supply

3 to 5 V

Length

3.3 cm

Height

0.2 cm

Width

1.5 cm
