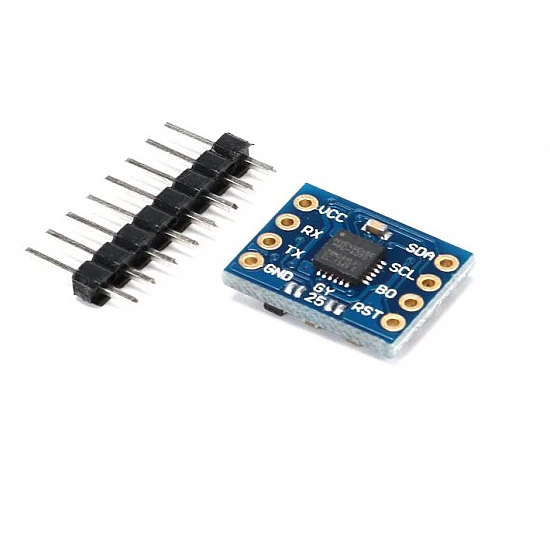

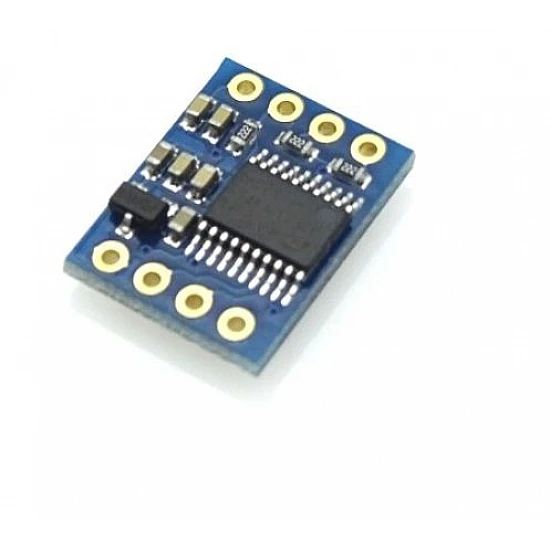

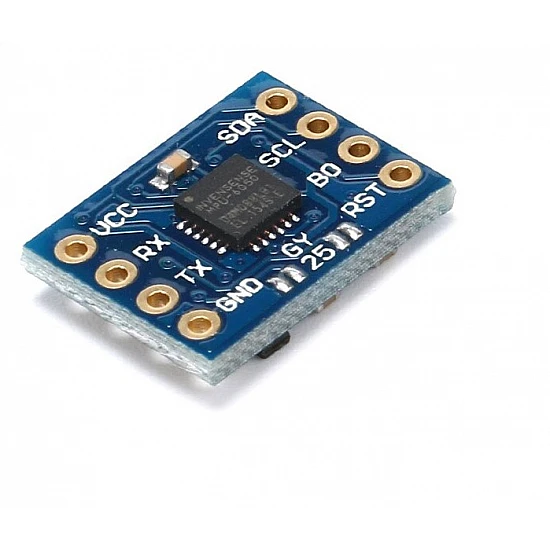

GY-25 MPU-6050 6DOF Angle Module Tilt Angle Module MCU Data output Serial

Features:

• Chip: MCU + MPU6050.
• Model: GY-25.
• Power supply: 3-5v (internal low dropout regulator).
• Communication: serial communication (baud 9600,115200), IIC communication.
• Module Dimensions: 15.5mm x 11.5mm.
• 2.54mm pitch.
• Direct Data: YAW ROLL PITCH.
• Heading angle (YAW) ± 180°
• Roll angle (ROLL) ± 180°
• The pitch angle (PITCH) ± 180°
• 0.01° angular resolution

Package Includes:

1 x GY-25 MPU-6050 6DOF Angle Module Tilt Angle Module MCU Data output Serial.
