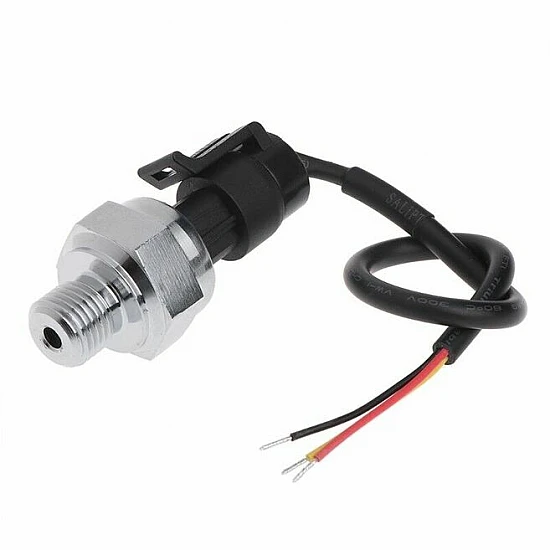

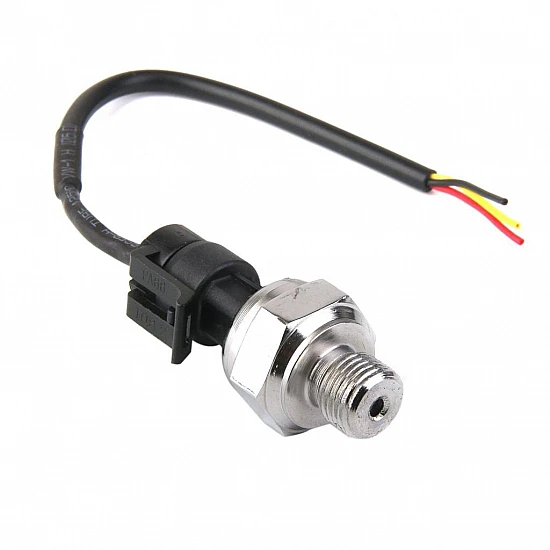

G1/4inch 0.5MPa Stainless Steel Pressure Transducer Sensor

G1/4inch 0.5MPa Stainless Steel Pressure Transducer Sensor is made from High-Quality stainless steel material providing it with rigidity.

The transducer comes with a standard thread size of G1/4 and can work in both air and water. The sensor gives a digital output in the range of 0.5V to 4.5V while operating at 5VDC. The sensor has stable performance characteristics with a long operation life.

Features:

• Compact, Easy to Install
• Light Weight and Small Volume
• High Sealing Performance
• High-Quality Hall Effect Sensor
• Stainless steel body
• Adopt Precision Compensation Technology and Sensitive Components, Stable and Reliable.
• Complete Surge Voltage Protection Function
• 0.1% FS Small Output Error, Including Nonlinear, Hysteresis Error, and Repeatability.

Applications:

• Pressure Detection in Oil Tank, Gas Tank.

Package Includes:

1 x G1/4inch 0.5MPa Stainless Steel Pressure Transducer Sensor
