Flysky FS-iA10B 2.4Ghz 10CH Receiver PPM Output With iBus Port

Flysky FS-iA10B 2.4Ghz 10CH Receiver PPM Output With iBus Port
Flysky FS-iA10B 2.4Ghz 10CH Receiver PPM Output With iBus Port
Flysky FS-iA10B 2.4Ghz 10CH Receiver PPM Output With iBus Port
Flysky FS-iA10B 2.4Ghz 10CH Receiver PPM Output With iBus Port
Flysky FS-iA10B 2.4Ghz 10CH Receiver PPM Output With iBus Port
Flysky FS-iA10B 2.4Ghz 10CH Receiver PPM Output With iBus Port
Flysky FS-iA10B 2.4Ghz 10CH Receiver PPM Output With iBus Port
Flysky FS-iA10B 2.4Ghz 10CH Receiver PPM Output With iBus Port
Flysky FS-iA10B 2.4Ghz 10CH Receiver PPM Output With iBus Port
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹1,598
5 or more ₹1,503
15 or more ₹1,450

(Excluding 18% GST)

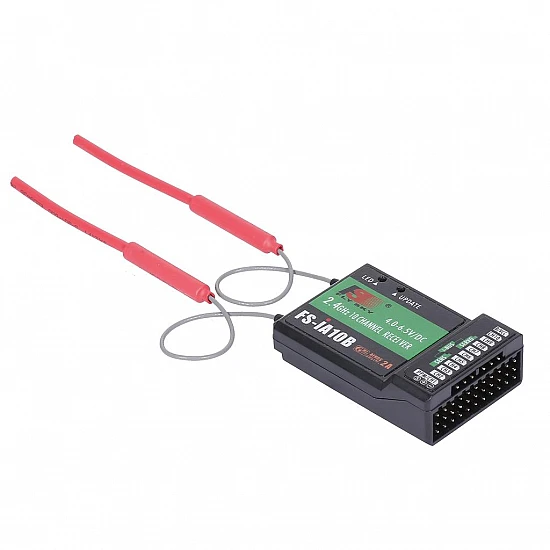

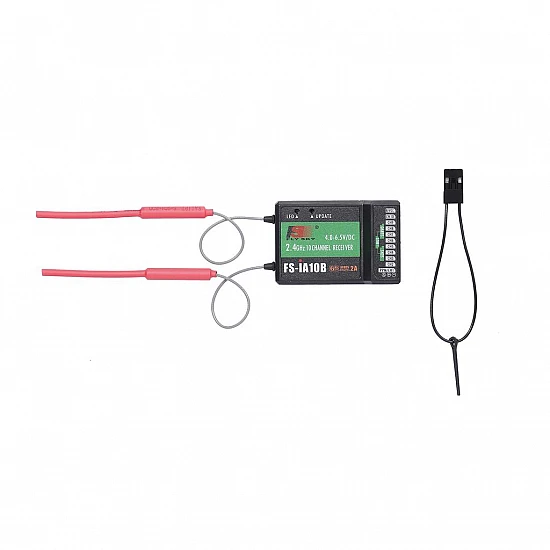

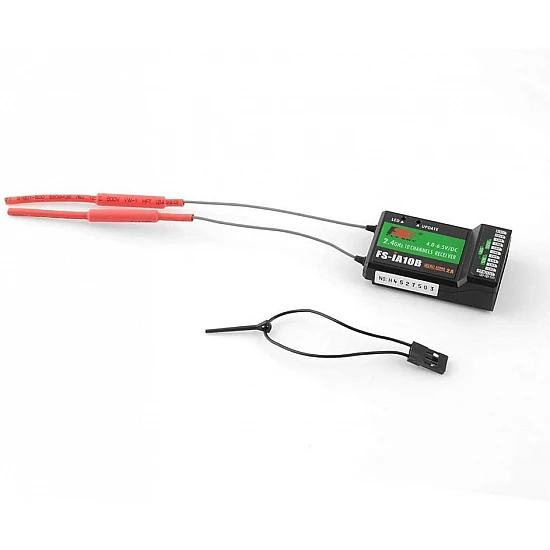

This is a FlySky FS-iA10B receiver with 10 channel, 2.4G wireless frequency for FlySkt remote control. Like the FS-iA6B, the iA10B is capable of iBUS, SBUS, PPM, and PWM for enhanced control. Dual antennas give the FS-iA10B unparalleled reception and interference rejection capability. For best results, makes sure the antennas are set at a 90-degree angle from each other.

This full 10 channel receiver works for most models and is considered a “full range” so it can handle larger models as well as the smaller ones. Furthermore, with the optional telemetry sensors, you can expand the receiver’s compatibility to monitor flight battery voltage and even things like motor RPM.

The FS-iA10B is slightly larger than the FS-iA6B (see product pic), but it’s still compact and it features end-on connectors to enable a neat installation in tight spaces.

Suitable transmitter Flysky FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2F, FS-GT2G, FS-it4S, FS-GT5, FS-i8, and FS-TM10 transmitter.

Features:

  • Dual antennas for reliable, interference-free operation
  • Reliable, interference-free 2.4GHz AFHDS 2A signal operation
  • Compact, lightweight design
  • Connection ports for use with optional telemetry sensors
  • Support iBUS, SBUS, PPM, and PWM

Package Includes:

1 x Flysky FS-iA10B 2.4Ghz 10CH Receiver PPM Output With iBus Port

Technical
Model

FS-IA10B

Antenna Gain

2dB

Current consumption

≤40 mA

Data Acquisition Interface

Yes

Encoding

GFSK

Length of Antenna

11 cm

Modulation Type

GFSK

No. of Band

140

No. of Channels

10

Operating Voltage

4.0 ~ 6.5 VDC

RF Range

2.4055–2.475 GHz.

Sensitivity

-105 dBm

Signal Output

IBUS, PPM

Dimensions (LxWxH)

4.7 x 3.4 x 1.5 cm
