FlySky FS-i6 2.4G 6CH AFHDS Transmitter With FS-iA6B Receiver for RC FPV Drone

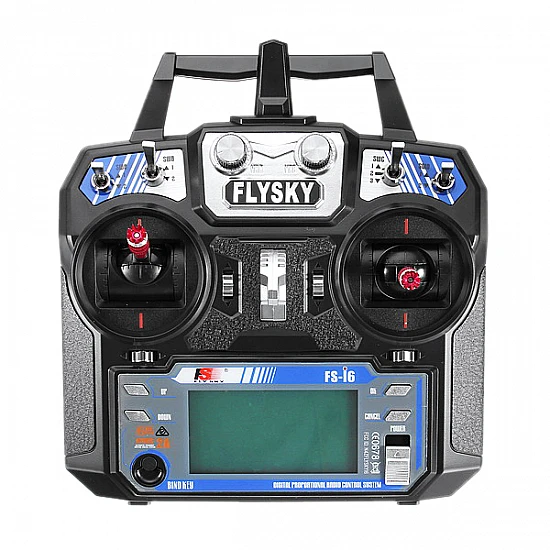

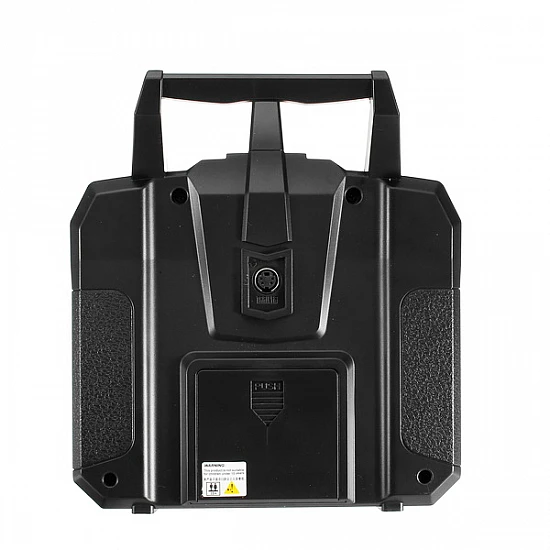

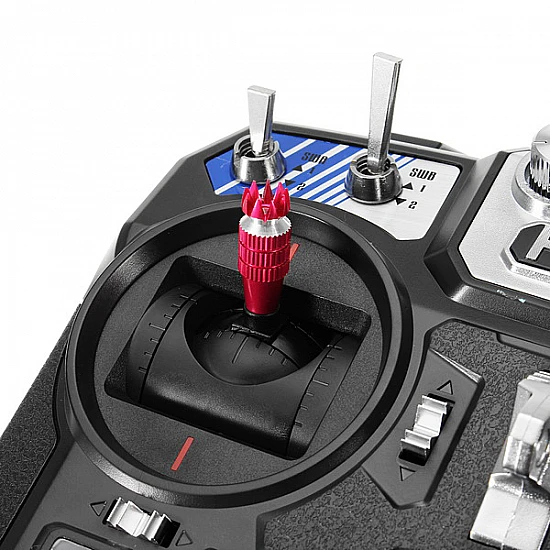

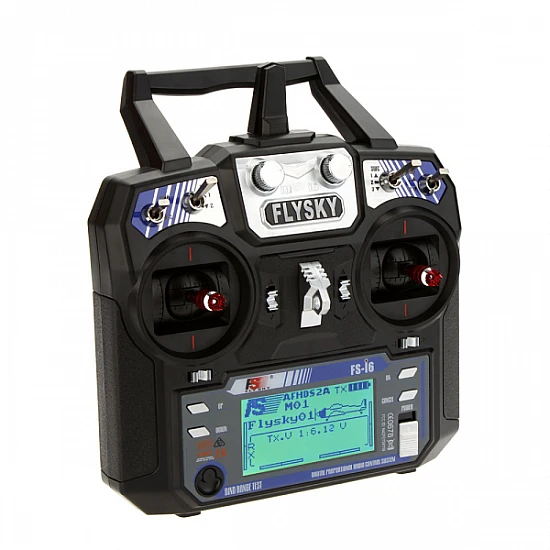

FS-i6 Specifications:

• Channels: 6 Channels
• Model Type: Glider/Heli/Airplane
• RF Range: 2.40-2.48GHz
• Bandwidth: 500KHz
• Band: 142
• RF Power: Less Than 20dBm
• 2.4ghz System: AFHDS 2A and AFHDS
• Code Type: GFSK
• Sensitivity: 1024
• Low Voltage Warning: less than 4.2V

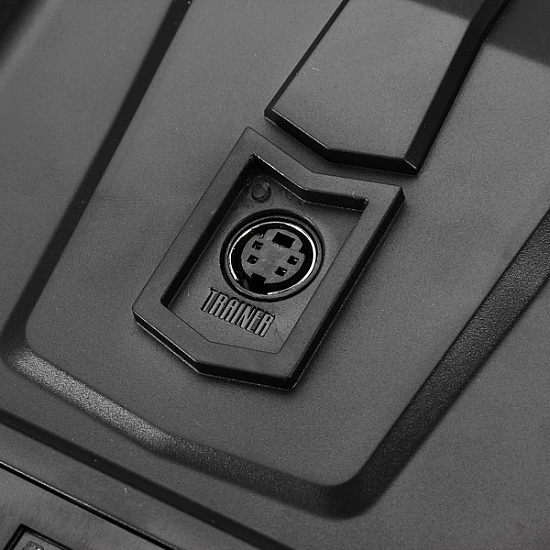

• DSC Port: PS2;Output:PPM
• Charger Port: No
• ANT length: 26mm*2(dual antenna)
• Transmitter Weight: 392g
• Transmitter Size: 174x89x190mm
• Power: 6V 1.5AA*4
• Display mode: Transflective STN positive type, 128*64 dot-matrix VA73*39mm, white backlight.
• On-line update:yes
• Color: Black
• Certificate: CE0678,FCC
• Model Memories: 20
• Control Range: 500m

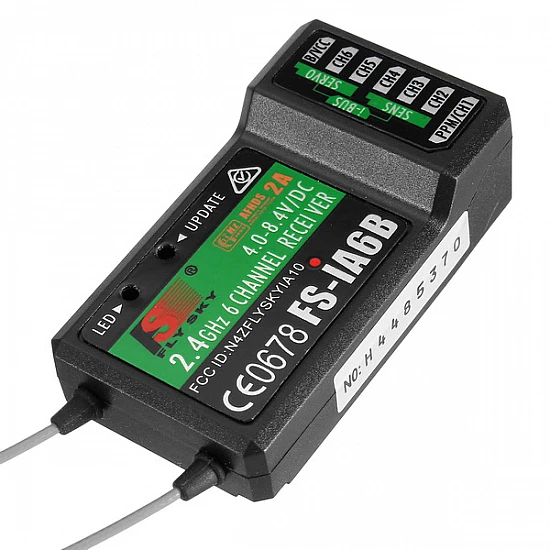

FS-iA6B Specifications:

• Item Name: FS-iA6B
• Channel: 6
• Frequency Range: 2.4055--2.475GHZ
• Band Width Number: 140
• Transmitting Power: ≤ 20dBm
• RF Receiver Sensitivity: -105dbm
• 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
• Encoding: GFSK
• Antenna Length: 26mm * 2 (dual antenna)
• Input Power: 4.0-6.5V DC
• Dimension: 47 x 26.2 x 15mm
• Color: Black
• i-Bus Interface: Yes
• Data Acquisition Interface: Yes
• Model Type: Airplane / Glider / Helicopter
• Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G

Features:

• Works in the frequency range of 2.405 to 2.475GHz.This brand has been divided into 142 independent channels, each radio system uses 16 different channels and 160 different types of hopping algorithm.
• This radio system uses a high gain and high-quality multi-directional antenna, it covers the whole frequency band. Associated with a high sensitivity receiver, this radio system guarantees a jamming free long-range radio transmission

• Each transmitter has a unique ID when binding with a receiver, the receiver saves that unique ID and can accept only data from the unique transmitter. this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

• This radio system uses low power electronic components and sensitive receiver chip. The RF modulation uses intermittent signal thus reducing even more power consumption.
• AFHDS2A system has the automatic identification function, which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.

• AFHDS2A has built-in multiple channel coding and error-correction, which improve the stability of the communication, reduce the error ratio and extend the reliable transmission distance.

Package  Included:

1 x Flysky FS-i6 transmitter

1 x Flysky FS-iA6B Receiver
