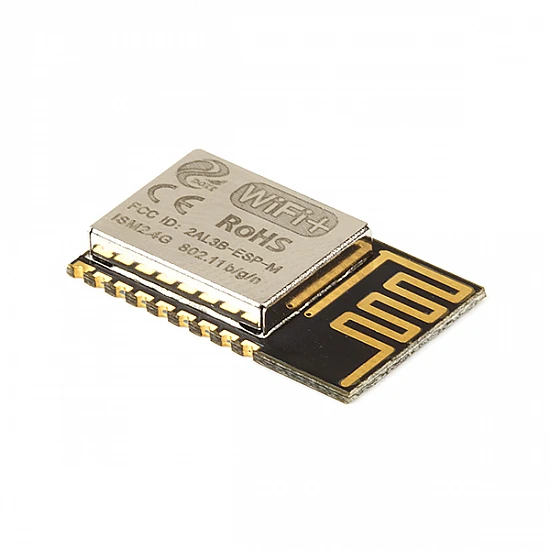

Esp8285-M2 Wifi Module

ESP-M2 is encapsulated by the high-performance chip ESP8285, which is equal to the ESP8266 chip plus 1M Flash.

The chip ESP8285 is encapsulated an advanced Tensilica’s L106 32-bit CPU, together with SRAM. ESP8285 has the full and complete WiFi function, which can be used independently and also used as a slaver with other Hoster MCU, which can start directly from the out-built Flash. In addition, the built-in high-speed buffer is a benefit for the system performance. Especially, ESP8285 can be used as a WiFi adapter by SPI/SDIO and/or I2C/UART interface, when it is applied to the other MCU design

Features:

• Ultra-small size
• Support serial to WiFi
• Wireless transparent transmission
• Long-distance transmission with ultra-low power
• Support outboard antenna
• Bearing high temperature to 125 ℃, compared to the 85℃ for ESP8266.

Specifications:

• Built-in Tensilica L106 ultra-low power 32-bit CPU, main frequency supports 80MHz and160MHz and RTOS
• Built-in TCP/IP protocol
• Built-in one-channel 10-bit high precision ADC
• Outboard interface: HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO
• Deep sleep current is 10uA, the cut-off current is smaller than 5uA
• Wake, connect, and transmission data package within 2ms
• They consumed power is smaller 1.0Mw (DTIM3) when at stand by status
• Built-in 1M byte for SPI Flash.

Package Includes:

1 x Esp8285-M2 Wifi Module
