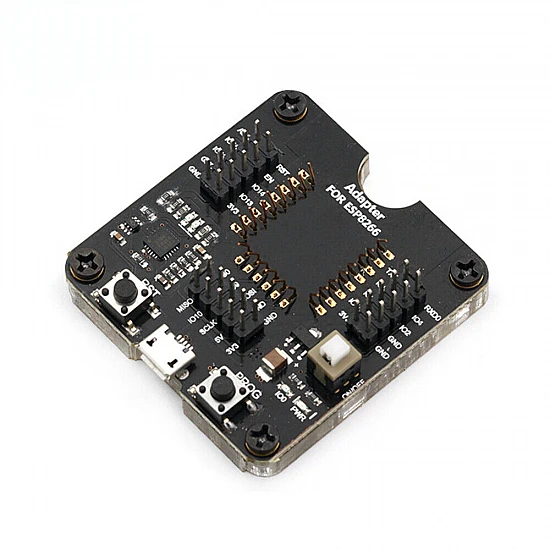

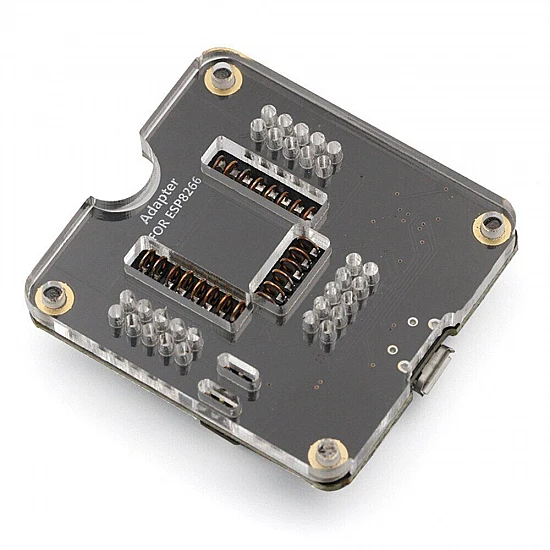

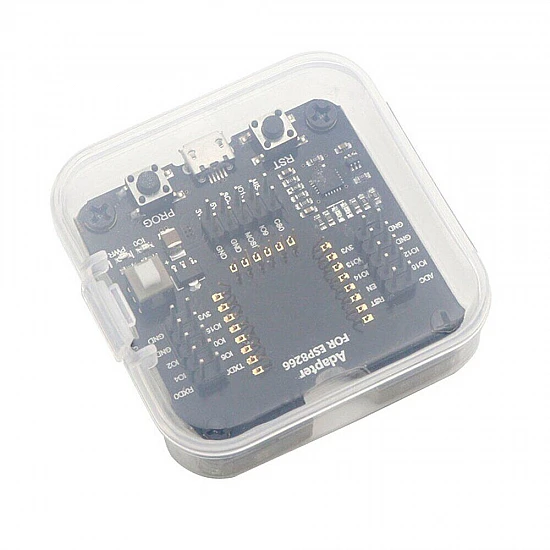

ESP8266 Development Fixture Board

The ESP8266 development fixture board can be used to program ESP8266 chips for development. The development board has fixtures for ESP8266 modules, along with an AMS1117 3.3 version regulator and an integrated CP2104 USB-TTL chip for driving and programming the ESP module via USB. Additionally, the development fixture board features GPIO headers that can be used to directly drive peripherals.

Features:

• Model: ESP8266
• Interface: Micro USB
• Support for one-click firmware download
• Small size, extended service life, safe, and reliable.
• Additionally, there are indicators for serial transmission, burning, and power.
• Lead out all IO ports, which can be done using a small batch burning fixture or a system development board at a minimum.
• Controller Chip: UART to UART Bridge Controller (CP2104).

Package Includes:

1 x ESP8266 Development Fixture Board.
