ESP32S Wireless WIFI Bluetooth Module Adapter Breakout Board for ESP-32F ESP-32S

This is Adapter Breakout Board for ESP-32F ESP32 ESP-Wroom-32 Wireless Bluetooth Module. This Adapter Board is suitable for the ESP-32F module. ESP-32F Adapter Board minimum system needs only lead 4 lines to connect to USB serial adapter, TXD should be connected to TX, TXD should be connected to RX.

Adapter Board Pinboard Converter for ESP-32S ESP32S ESP32 Wireless WIFI Module 2.54mm. This is an adapter board for ESP-32S Wireless Module. It can be inserted into the breadboard with Dupont cable wire. Convenient to develop and debug.

Note: You must connect a 4,7K-20K pull-up resistor in the EN pin to 3.3V, we recommend 12K. According to the above description, power on after connecting the line and default operating mode, press the I00 button to get into download mode, and press the RESET button to download after you flash your code.

Features:

• For ESP32

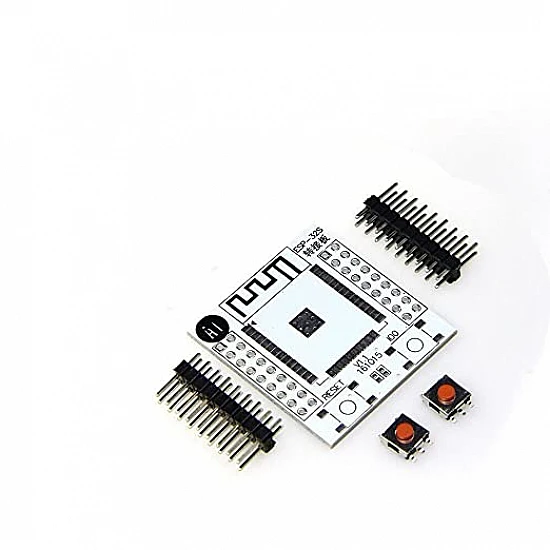

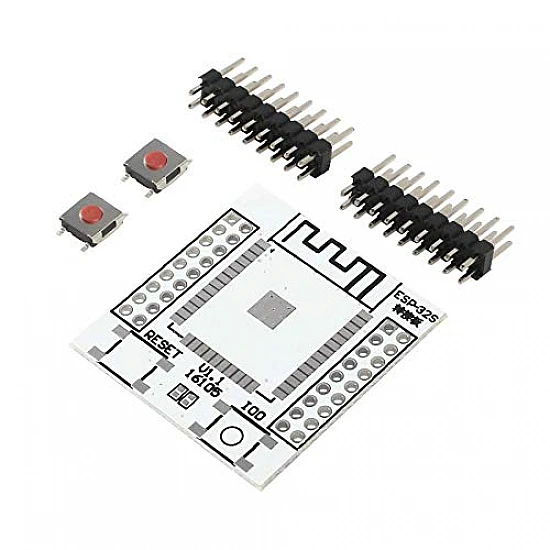

• Onboard Reset button and flashing firmware button

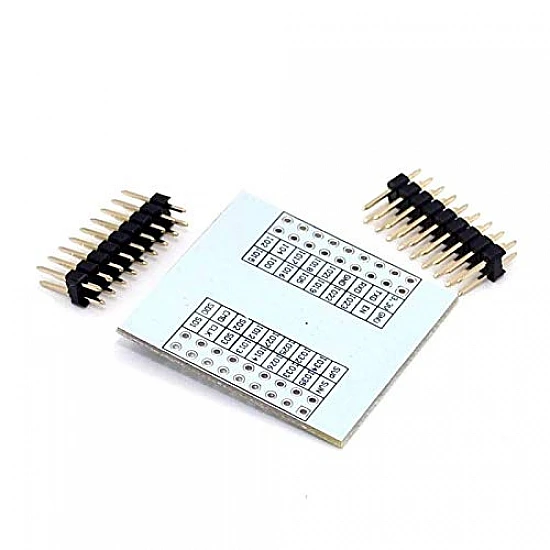

• Includes the adapter board and male double-row pins connectors (not soldered)

Package Includes:

1 x Adapter Breakout Board
