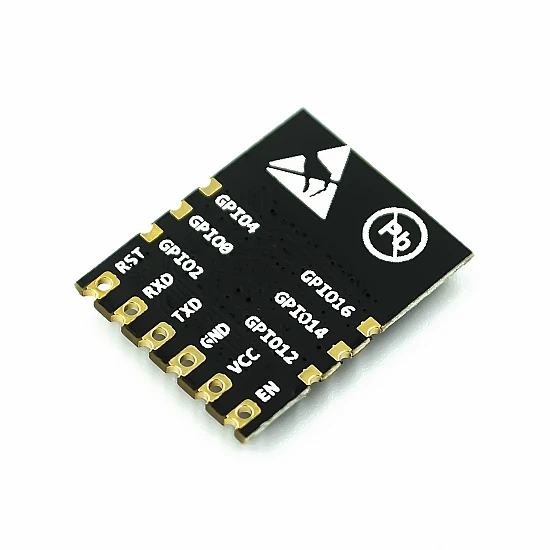

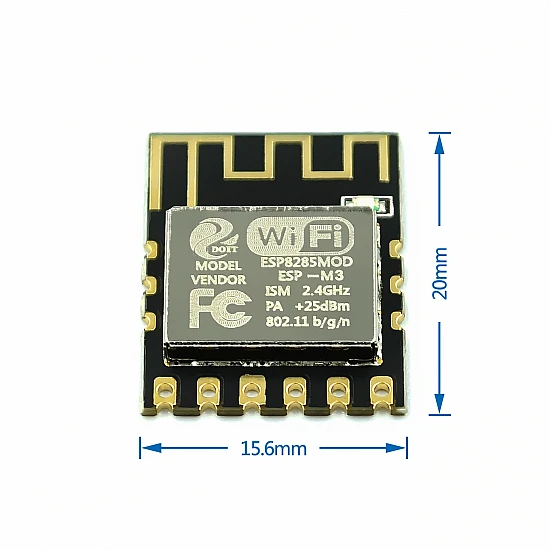

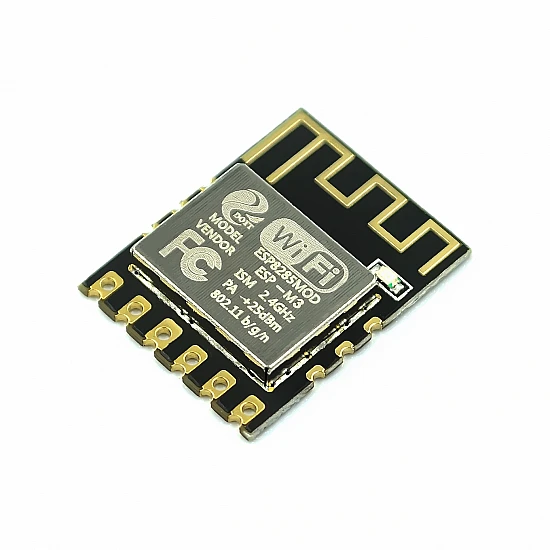

ESP-M3 ESP8285 Serial Wireless WiFi Transmission Module Compatible with ESP8266

ESP-M3 is encapsulated by the high-performance chip ESP8285, which is equal to the ESP8266 chip plus 1M Flash. It has advanced Tensilica's L106 32-bit CPU, together with SRAM. ESP8285 has the complete Wifi function. The built-in high-speed buffer is beneficial for system performance. Especially, ESP8285 can be used as a WiFi adapter by SPI/SDIO and/or I2C/UART interface, when it is applied to the other MCU design.

Features:

• Model: ESP8285 ESP-M3
• Ultra-small size
• Support serial to WiFi
• Fully Compatible with ESP8266
• Easy access to pins
• Low consumption
• Wireless transparent transmission;
• Long-distance transmission with ultra-low power;
• Supporting the most commonly used networks (802.11 b/g/n)
• Bearing high temperature to 125 ºC, compared to the 85ºC for ESP8266.

Application:

• Household appliances, home automation, smart sockets, smart lights, Mesh networks, sensor networks, wearable electronics, baby monitors, IP cameras, security ID tags, wireless location awareness, wireless positioning system beacons, industrial wireless control.

Package Includes:

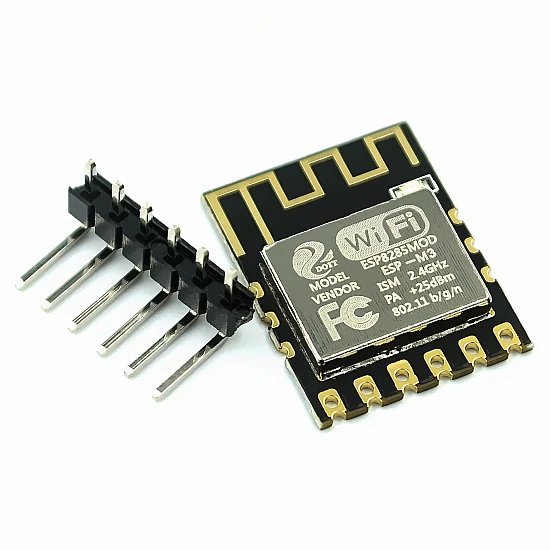

1 x ESP-M3 ESP8285 Serial Wireless WiFi Transmission Module

1 x Header Pins.
