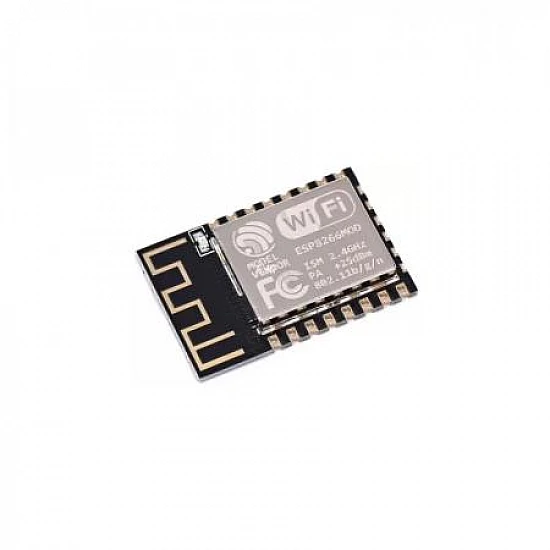

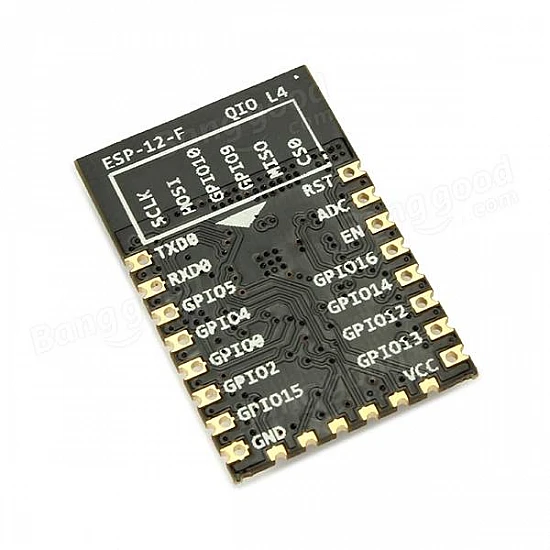

ESP-12F ESP8266 Wifi Wireless IoT Board Module

The Latest ESP-12F ESP8266 Wifi Module AP & Station Remote Serial Wireless IoT Board is an integrated chip designed for the needs of a new connected world. ESP8266 is a low-cost Wi-Fi chip with a full TCP/IP stack and MCU capability. It can handle all the necessary overhead for communicating with your network, such as TCP/IP stack and communicating with your 802.11 networks.

ESP8266 Serial Wifi Wireless Transceiver Module has a powerful enough on-board processing and storage capability that allows it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime.ESP8266 Serial Wifi Wireless Transceiver Module is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers.

ESP8266 Serial Wifi Wireless Transceiver Module is a self-contained SOC with an integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existence interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions and requires no external RF parts. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, which is designed to occupy minimal PCB area.

It improved on the Following:

• The four laminates plate process
• Anti-jamming ability
• Stronger WiFi signal output
• Enhanced impedance matching
• Peripheral circuit
• PCB antenna redesigned after professional laboratory testing

Corresponding Interface :

• Integrated WEP, TKIP, AES, and WAPI engines
• Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
• SDIO 2.0, SPI, UART
• On-chip low-dropout linear regulators for all internal supplies
• Quality of Service management
• I2S interface for high fidelity audio applications
• Integrated RISC processor, on-chip memory, and external memory interfaces
• Integrated MAC/baseband processors
• Proprietary spurious-free clock generation architecture
• 32-pin QFN package

Specifications & Features:

Package Includes :

1 x ESP-12F ESP8266 Wifi Module
