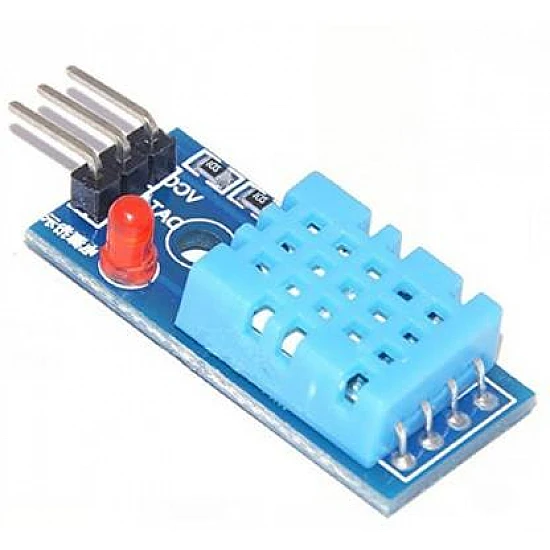

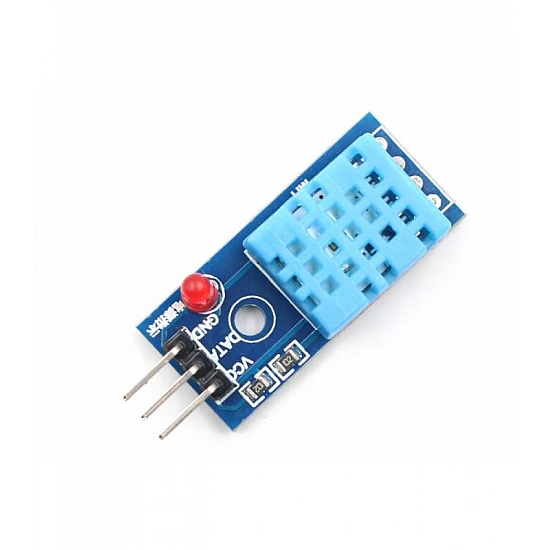

DHT11 Temperature And Humidity Sensor Module with LED

DHT11 Temperature And Humidity Sensor Module with LED
DHT11 Temperature And Humidity Sensor Module with LED
DHT11 Temperature And Humidity Sensor Module with LED
DHT11 Temperature And Humidity Sensor Module with LED
DHT11 Temperature And Humidity Sensor Module with LED
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹60
10 or more ₹56
50 or more ₹55

(Excluding 18% GST)

The DHT11 Temperature And Humidity Sensor Module with LED is a small humidity and temperature sensor that you can connect to your Arduino and get readings for temperature and humidity in the environment. DHT11 can be interface with any microcontroller like Arduino, Raspberry Pi, etc., and get instantaneous results. DHT11 is a low-cost humidity and temperature sensor which provides high reliability and long term stability.
 Features:
  • DHT11 sensor with PCB and LED indicator along with cable; 3 to 5V power and I/O, 4 pins with 0.1″ spacing
  • Good for 20-80% humidity readings with 5% accuracy
  • 2.5mA max current use during conversion (while requesting data)
  • Good for 0-50°C temperature readings ±2°C accuracy.
  • The board has a pre-built 4.7K or 10K resistor, which you will need to use as a pull-up from the data pin to VCC.

Package Includes:

1 x DHT11 Temperature And Humidity Sensor Module.

Technical
Model

DHT11

Humidity measurement error

±5%RH

Humidity measurement range

20% ~ 95%RH

Resolution

16 Bit

Supply Voltage

3.3 ~ 5 V

Temperature measurement error

±2°C

Temperature range

0 ~ 50 °C

Length

3.1 cm

Height

0.75 cm

Width

1.4 cm
