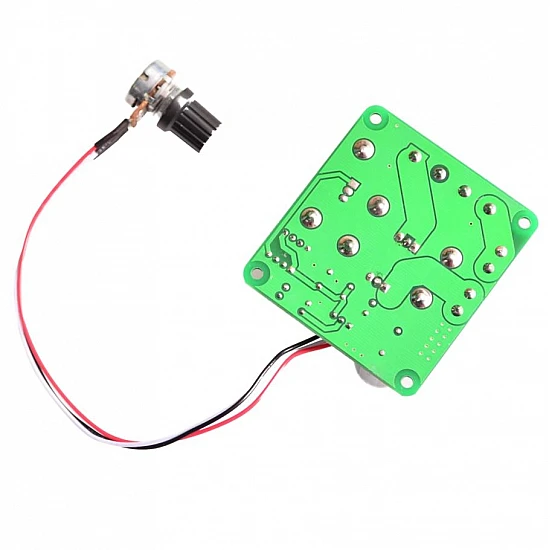

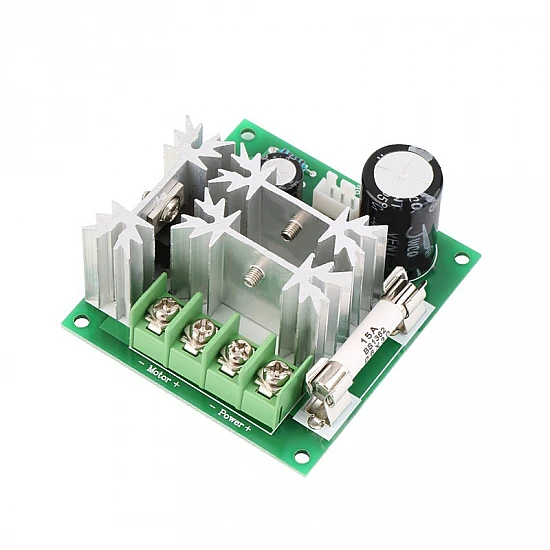

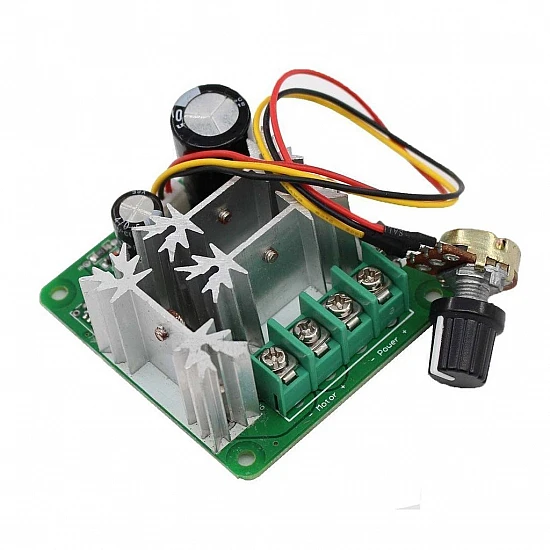

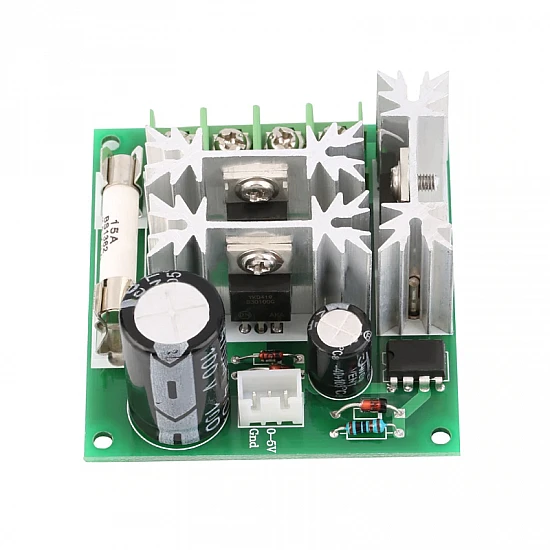

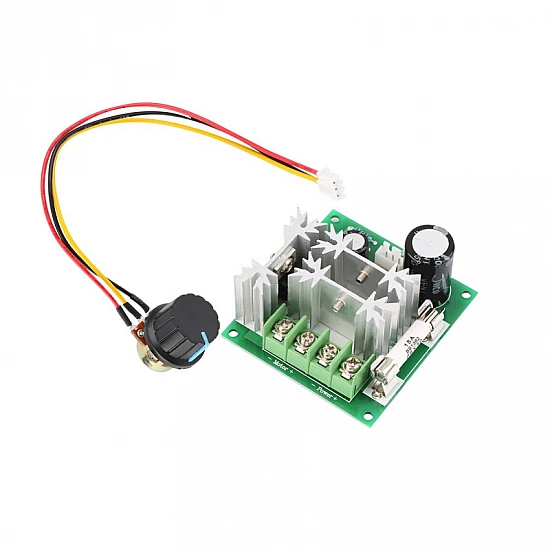

DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller

DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹242
7 or more ₹231
30 or more ₹225

(Excluding 18% GST)

DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). It is widely used in industrial production. It comes with a button to control the speed of the motor

Features:

  • Operating voltage: DC 6V-DC 90V, max. power: 1000W.
  • A PWM speed controller enables you to control the speed of DC motors smoothly.
  • This motor speed control switch can control the motor speed from between 0% -100%.
  • Support PLC control, stable performance, high efficiency, and low noise.
  • Suitable for applications like fans, etc. providing nice adjustment of motor speed.

Package Includes:

1 x DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller.

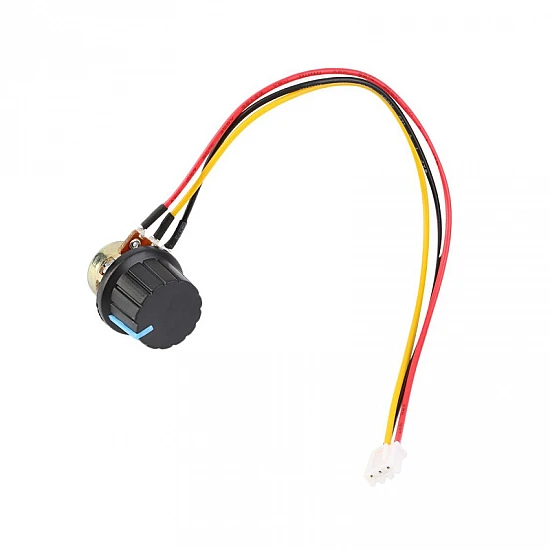

1 x Potentiometer with Connector.

Technical
Controlled Power

0.01-1000W

Maximum Current

15A

Operating Current

Max 8A

Operating Voltage

6 - 90 VDC

PWM Frequency

16KHZ

Length

60 mm

Height

30 mm

Width

63 mm
