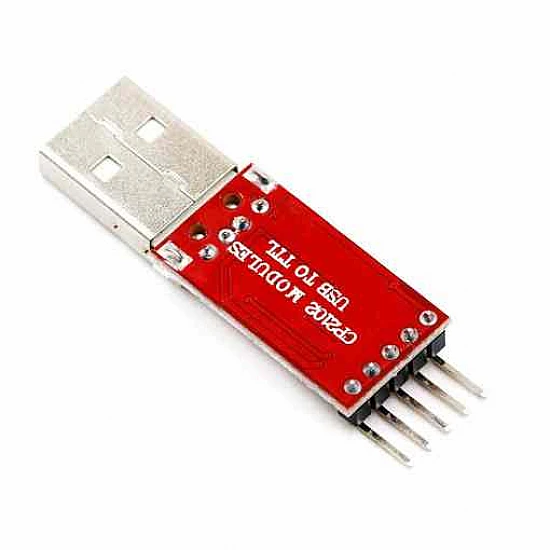

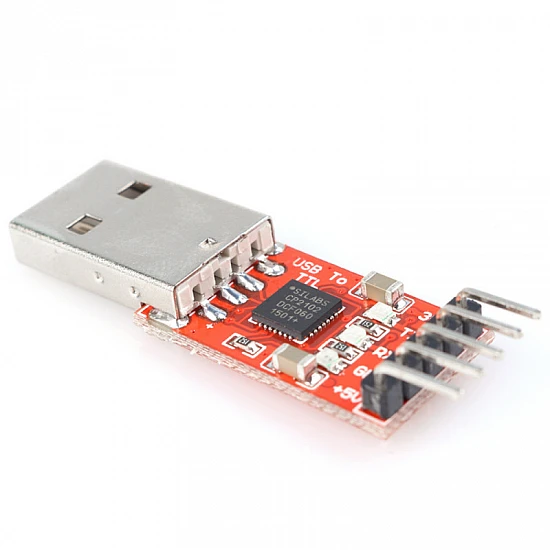

CP2102 (5-pin) USB to TTL UART serial converter Module

CP2102 chip is a single-chip USB to UART bridge IC. It requires minimal external components.

CP2102 can be used to migrate legacy serial port based devices to USB.

Features:

• Stable and reliable chipset CP2102.
• USB specification 2.0 compliant with full-speed 12Mbps.
• Standard USB type A male and TTL 6pin connector.
• 6pins for 3.3V, RST, TXD, RXD, GND & 5V.
• Baud rates: 300 bps to 1.5 Mbps
• Byte receives buffer; 640 bytes transmit buffer.
• Hardware or X-On/X-Off handshaking supported.
• Event character support Line break transmission.
• USB suspend states supported via SUSPEND pins.
• Temperature Range: -40 to +85.
• Size: 42mm X 15mm.
• Weight: 4g

Package Includes:

1 x CP2102 USB UART module
