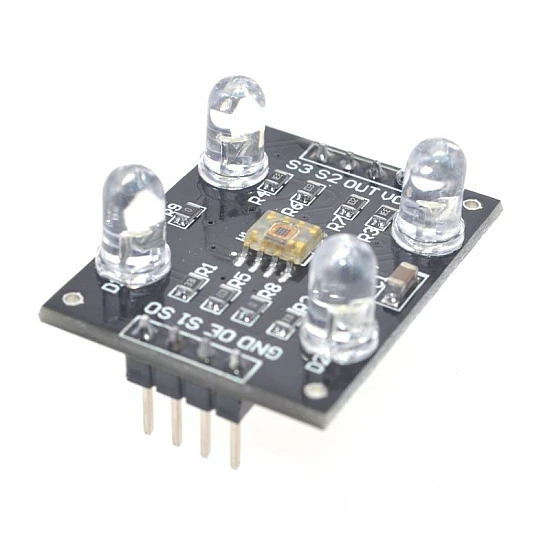

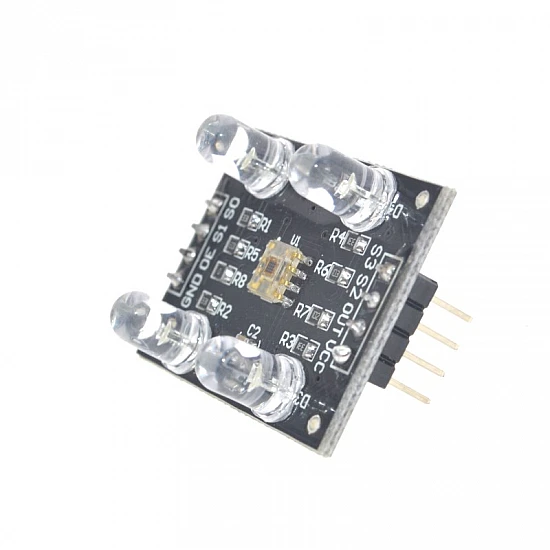

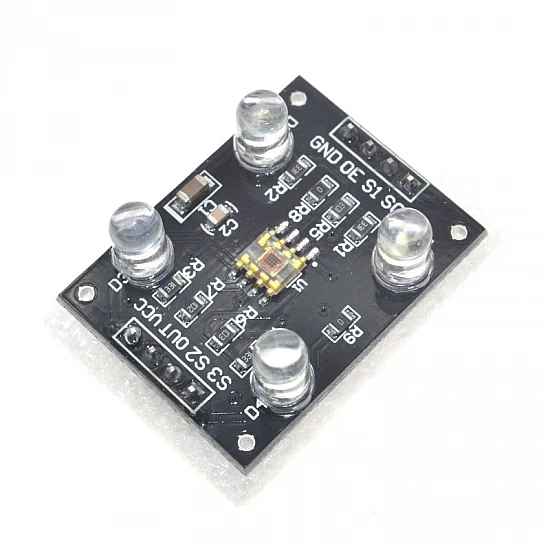

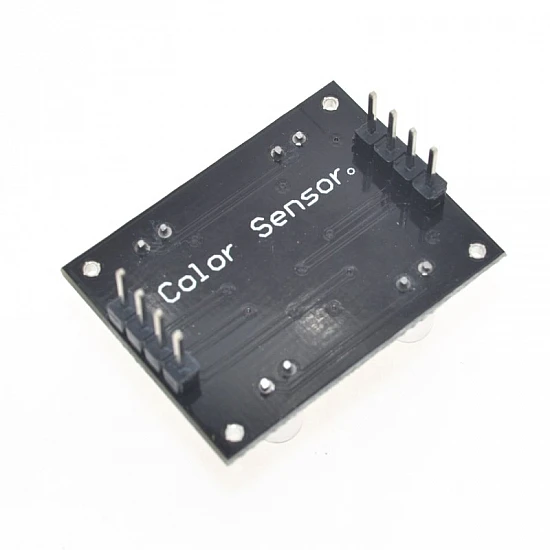

Color sensor TCS230 TCS3200 Color Recognition Sensor Detector Module

This Product is available in Ahmedabad - India Warehouse .

Approx Delivery Time is 2-5 Days.

Stock: In Stock
Brand: Import Dukan
SKU: ID-01-665

Based on 0 reviews. - Write a review

₹324

7 or more ₹306

30 or more ₹296

(Excluding 18% GST)

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

TCS230 8-pin SOIC surface-mount package, on a single chip,, has 64 photodiodes. These diodes are divided into four types. 16 of the photodiode with a red filter; 16 photodiodes with a green filter; 16 photodiodes with a blue filter; the remaining 16 without any filter, may all the optical information through. The photodiode chip is staggered, it is possible that minimize non-uniformity of the incident radiation, thereby increasing the accuracy of the color recognition; on the other hand, the same color of the photodiode 16 is connected in parallel, uniformly distributed in the diode array, you can eliminate the position error color.

Work by two programmable pins to dynamically select the desired filter. The typical output frequency range of the sensor from 2 Hz ~ 500 kHz, users can also select two programmable pins to 100%, 20%, or 2% of the output scale factor, or power-off mode. Output scale factor so that the output of the sensor can be adapted to different measurement range and increases its ability to adapt. For example, when using a low-speed frequency counter, you can choose a small scaling value that TCS230 output frequency and counter match.

Features:

imported chips TCS3200 PCB board with gold plating
TCS3200 is the TCS230 upgrade version, the better
Power supply 3-5v
anti-light interference
white LED can control the on and off.
can detect non-luminous object color
High-resolution conversion of light intensity to frequency.
Chip pins all have drawn for standard 100.
Put the needle (2.54 mm).
Mil-convenient for bitmap board.
Programmable color and full-scale output frequency.
Communicate directly with a microcontroller.
Low-profile surface-mount package.

Package includes:

1 X Color sensor TCS230 TCS3200 Color Recognition Sensor Detector Module

Technical
Best Detection Range	10 cm
Operating Voltage	3-5 V
Length	3.2 cm
Height	1.1 cm
Width	2.5 cm

Tags: tcs230 , colour sensor , color sensor , color recognition sensor , colour recognition sensor , color sensor for arduino
