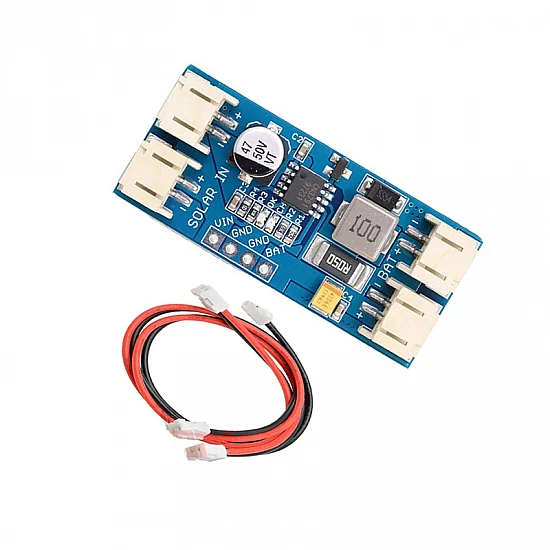

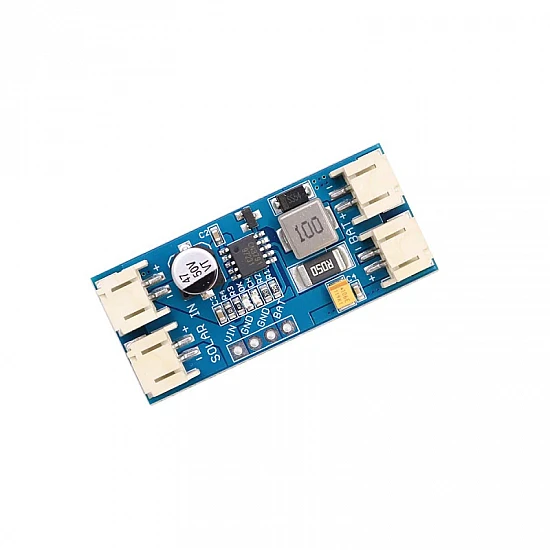

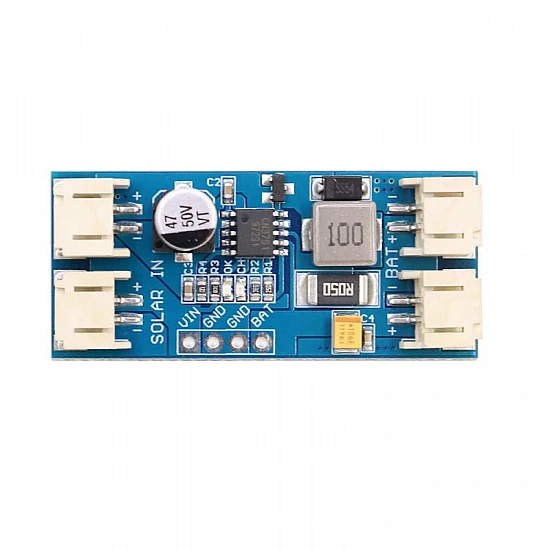

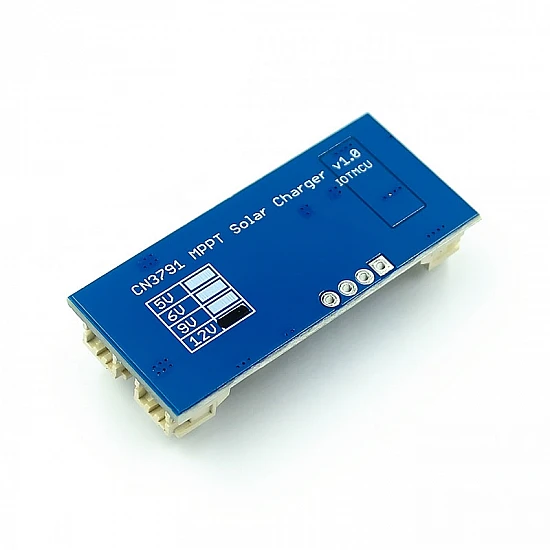

CN3791 12V MPPT Solar Charger Module
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
- Stock: In Stock
- Brand: Import Dukan
- SKU: ID-01-565
₹202
7 or more ₹194
30 or more ₹190
(Excluding 18% GST)
MPPT is Maximum Power Point Tracking. This CN3791 12V MPPT Solar Charger Module provides you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargeable LiPo battery.
The set-up is easy as well, just plug your solar panel into one side of the solar charger and your battery into the other and you are good to start charging!
Features:
- Automatic recharge
- Charge status and charge end status indication
- Battery overvoltage protection
- Solar panel maximum power point tracking
- Complete charge management for single-cell lithium batteries.
Package Includes:
1 x CN3791 12V MPPT Solar Charger Module
Technical | |
Model | CN3791 |
Connector | 2-Pin JST |
Maximum Charging Current | 2 A |
Operating Temperature Range | -40°C to 85°C |
Operating Voltage | 12 VDC |
Switching Frequency | 300 kHz |
Length | 44.8 mm |
Height | 10 mm |
Width | 20 mm |
