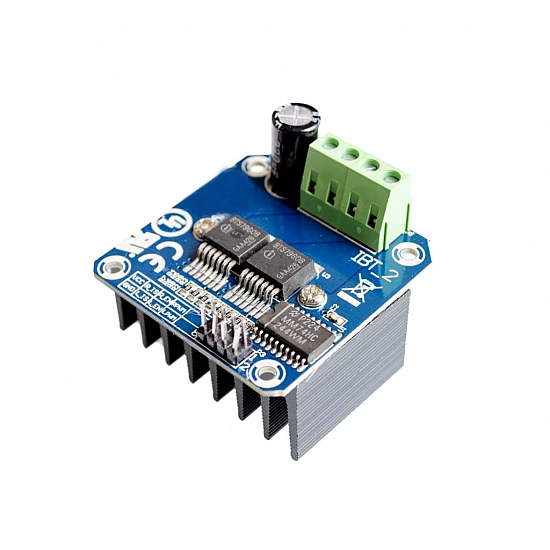

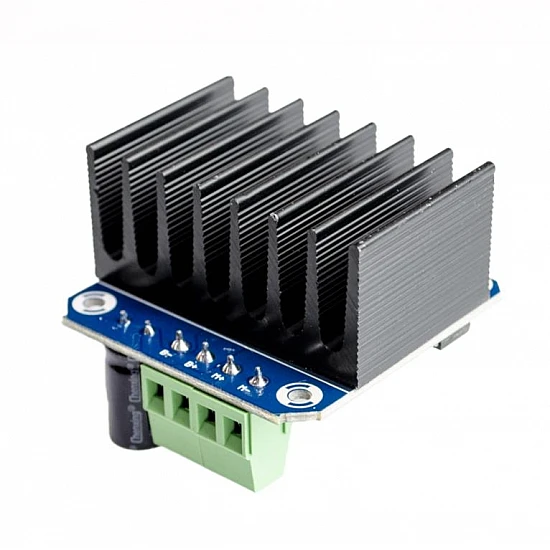

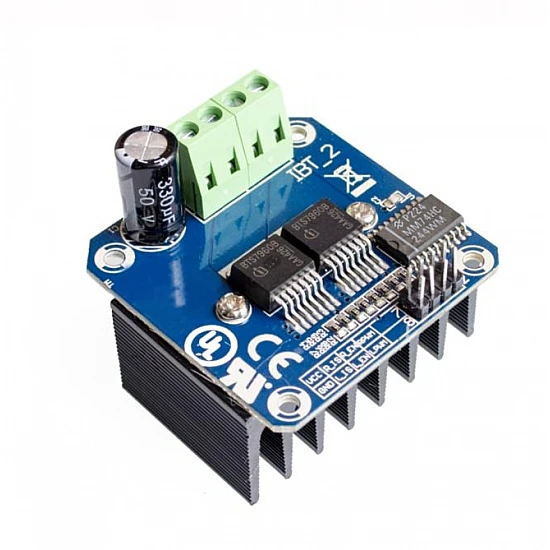

BTS7960 43A H-Bridge High Power Stepper Motor Driver Module

BTS7960 is a high-power H-bridge driver module with thermal over-current protection. It provides a cost-optimized solution for protected high current PWM motor drives with very low board space consumption. BTS7960 circuitry with the 74HC244 chip effectively isolates the microcontroller and the motor driver. It provides a strong drive and handles up to 43A.

Features:

• Double BTS7960 large current (43 A) H bridge driver
• The supply voltage: 5.5V to 27V
• It has an onboard 5V power indicator
• It has a driver circuit with logic-level inputs.
• Able to reverse the motor forward, two PWM input frequencies up to 25kHZ

Package Includes:

1 x BTS7960 43A H-Bridge High Power Stepper Motor Driver Module.
