BPW34 DIP-2 Silicon Photocell
- Stock: In Stock
- Brand: Import Dukan
- SKU: ID-07-978
₹54
10 or more ₹51
50 or more ₹49
(Excluding 18% GST)

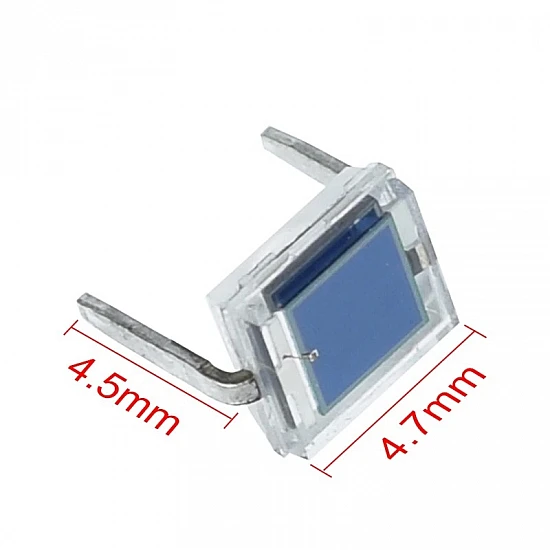

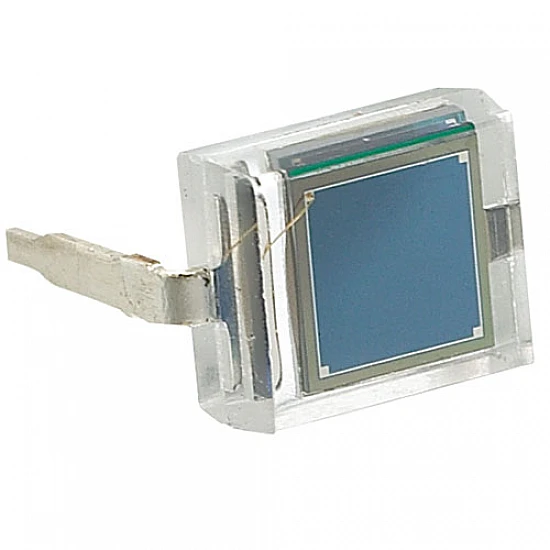

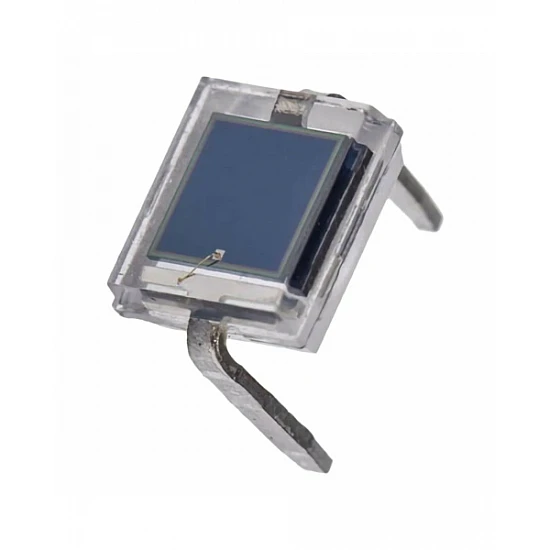

The BPW34 DIP-2 Silicon Photocell is a high-sensitivity, fast-response photodiode designed for light detection in a wide range of applications. With a spectral sensitivity from 400 nm to 1100 nm, it is ideal for detecting visible and near-infrared light. The device features low capacitance, enabling quick switching speeds, making it suitable for high-speed data transmission and optical sensing systems. Its compact DIP-2 package allows easy integration into circuits. The BPW34 offers a linear response to varying light intensities and is widely used in remote control receivers, light meters, and solar sensors.
Features:
- Silicon Photodiode
- DIP-2
- 400 nm to 1100 nm
- 900 nm wavelength
- High Sensitivity
- Fast Response Time
- Low Dark Current
- Low Capacitance
Package Incudes:
1 x BPW34 DIP-2 Silicon Photocell
Technical | |
Operating Temperature Range | -40°C to +85°C |
Sensing area | 7.5 mm² |
Sensitivity | 900 nm wavelength |
Spectrum range | 400 nm to 1100 nm |
