- Stock: Out Of Stock
- Brand: Import Dukan
- SKU: ID-02-802
(Excluding 18% GST)

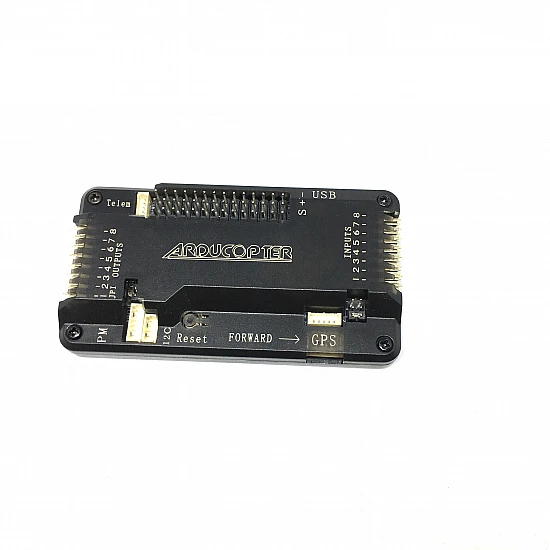

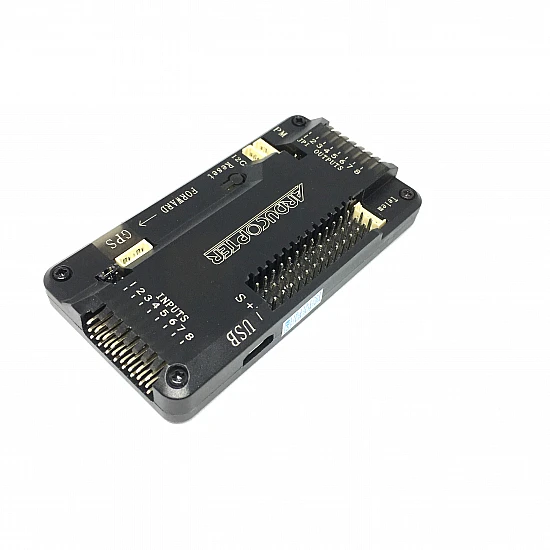

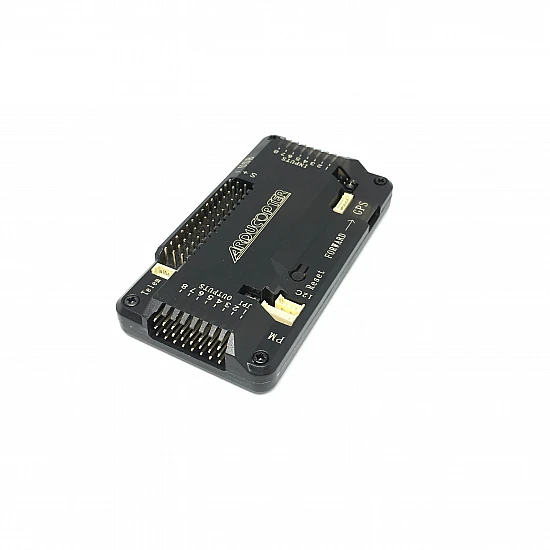

This is the new APM 2.8 Flight Controller autopilot module. The sensors are exactly the same as with APM2.6, this version is ideal for use with multi-copters and rovers. The APM 2.8 is a complete open source autopilot system and the bestselling technology that on the prestigious 2012 Outback Challenge UAV competition.
It allows the user to turn any fixed, rotary wing or multirotor vehicle (even cars and boats) into a fully autonomous vehicle; capable of performing programmed GPS missions with waypoints. Available with top or side connectors. This revision of the board is designed for vehicles (especially multi-copters and rovers) where the compass should be placed as far from power and motor sources as possible to avoid magnetic interference. On fixed wing aircraft it's often easier to mount APM far enough away from the motors and ESCs to avoid magnetic interference.
APM 2.8 has an onboard compass so this is designed to be used with the 3DR uBlox GPS with Compass so that the GPS/Compass unit can be mounted further from noise sources than APM itself.
(Download Mission Planner HERE)
Features:
- Arduino Compatible
- Built-in compass
- Includes 3-axis gyro, accelerometer, and magnetometer, along with a high-performance barometer
- Onboard 4 MegaByte Data flash chip for automatic data logging
- Optional off-board GPS, uBlox LEA-6H module with Compass.
- One of the first open-source autopilot systems to use Invensense's 6 DOF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
- Atmel's ATMEGA2560 and ATMEGA32U-2 chips for processing and USB functions respectively.
Package Include:
- 1 x APM 2.8 Arducopter Mega 2.8 Flight Control Board BUilt in compass
- 1 x Set of Female to Female jumper Cables
Note: Ardupilot and Arducopter Both identical.
Technical | |
Model | APM 2.8 |
Processor | ATMEGA2560 and ATMEGA32U-2 |
Clock Speed | 16 MHz |
Firmware | 3.2.1 |
Flash Memory | 256 KB of which 8 KB used by the bootloader |
Sensors | 3-Axis Gyrometer, Accelerometer, Barometer, Compass |
Supply Voltage | 5v BES of ESC and Power Module |
Type | FlightController |
Weight | ~80g |
Dimensions (LxWxH) | 70x45x15 |
