Ardupilot APM 2.8 Flight Controller kit

This Product is available in Ahmedabad - India Warehouse .

Approx Delivery Time is 2-5 Days.

Stock: In Stock
Brand: Import Dukan
SKU: IDC-02-806

Based on 0 reviews. - Write a review

₹7,825

3 or more ₹7,193

10 or more ₹6,842

(Excluding 18% GST)

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

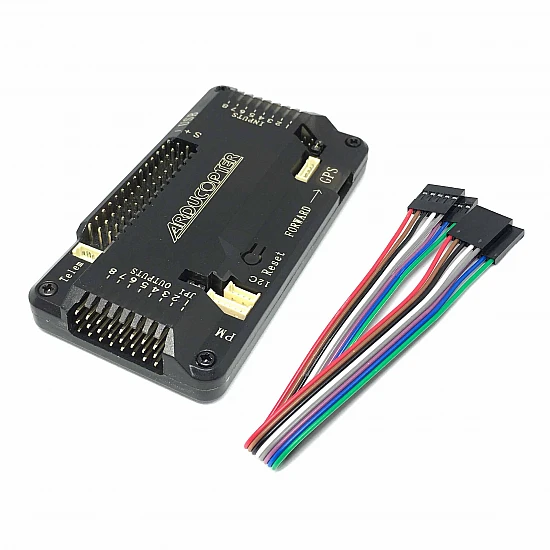

Ardupilot APM 2.8 Flight Controller with Built-in Compass is an amazing flight controller that allows the user to turn any fixed-wing, rotary-wing, or multi-rotor vehicle into a fully autonomous vehicle, capable of performing a wide range of tasks, even programmed GPS missions with waypoints.

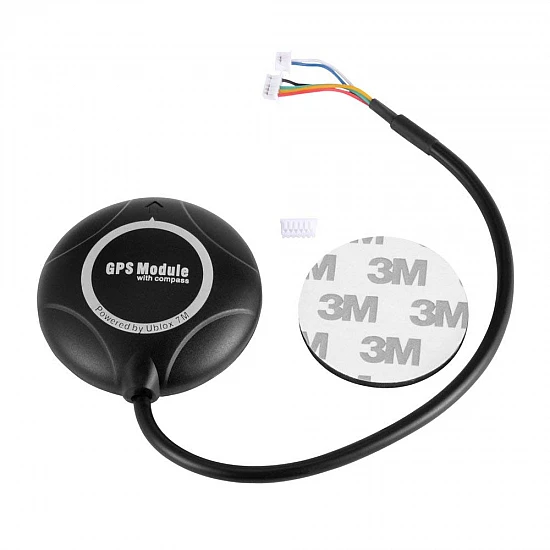

The new Ublox NEO 7 series is a high sensitivity, low-power GPS module that has 56 channels and outputs precise position updates at 10Hz. This GPS module includes two cables, a 6pin connector for the GPS module, and a 4 pin connector for the i2c compass. This GPS module also comes with a molded plastic case which keeps the module protected against the elements making it ideal for use on your aircraft or quadcopter.

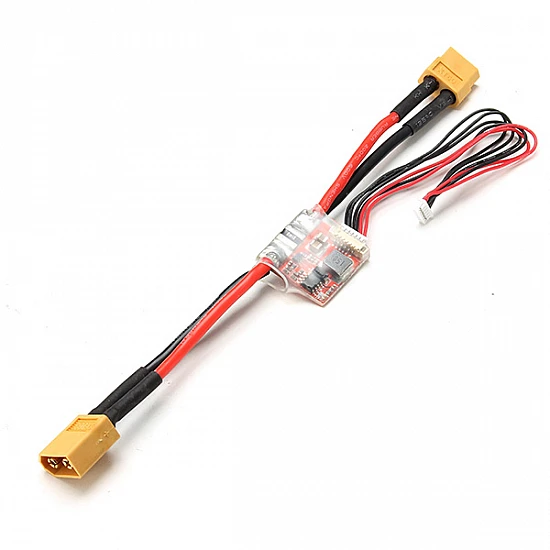

The Power Module is a simple way of providing your APM with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from a 2S-6S LiPo battery.

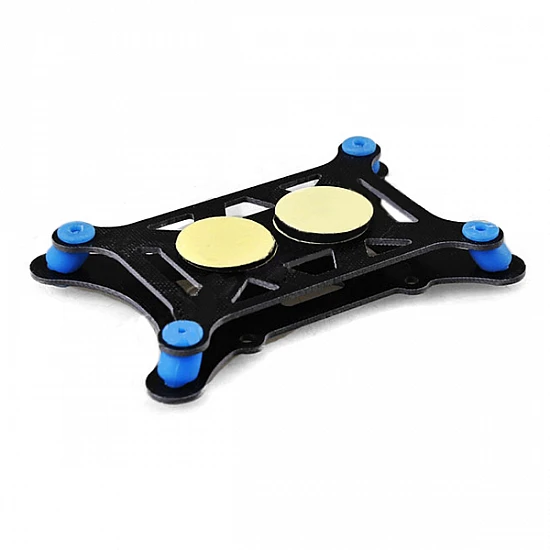

This is universal Glass Fiber Flight Controller Anti-vibration Set Shock Absorber APM, KK, MWC, and PixHawk vibration damping mount has a list of useful applications, This provides the free camera mounting to Flight controller isolation. The flush flat-bottom mounting allows bolt or tape-style attachment.

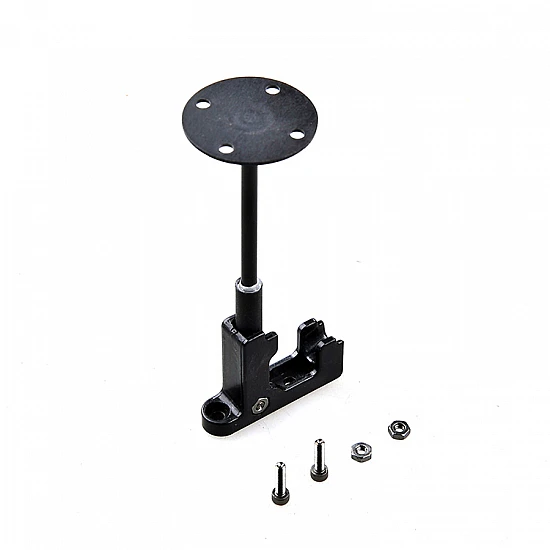

It is a Plastic GPS Antenna Foldable Mount Holder Seat Base Folding Bracket Holder DIY Drones FPV 250 / F450 / F550 Quad Copter Multi Copter. Fold-down your robust build capability and position it down.

(Download Mission Planner HERE)

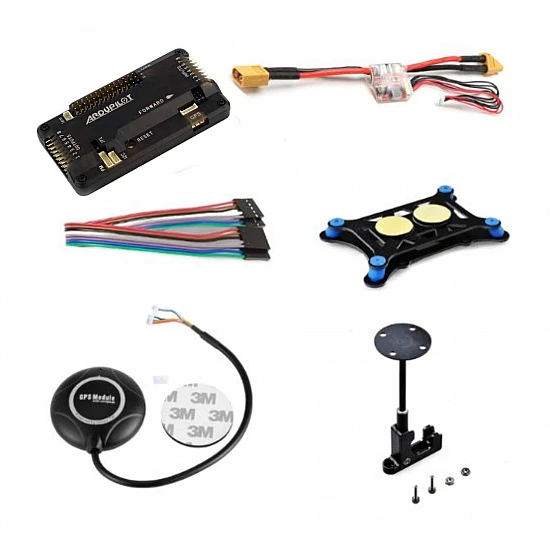

Package Includes:

1 x Ardupilot APM 2.8 Flight Control Board

1 x GPS Module Ublox NEO-7M With Electronic Compass

1 x APM Pixhawk Power Module with XT60

1 x Glass Fiber Shock Absorber Anti-vibration Set

1 x Plastic GPS Antenna Foldable Mount Holder

Flight Controller
Input Voltage	12~16 VDC
Model	APM 2.8
Processor	ATMEGA2560 and ATMEGA32U-2
Sensors	3-Axis Gyrometer; Accelerometer; High-performance Barometer
GPS
Input Voltage	3.5 ~ 5.5 VDC
Model	Ublox NEO 7M
Position Accuracy	2 - 2.5 m
Tracking Sensitivity	-161 dBm
Power Module
Connector Type	XT60
Length	16 cm
Operating Voltage	6 to 28 VDC

Tags: ardupilot apm 2.8 flight controller kit , apm 2.8 , GPS NEO-7M , Shock Absorber Anti-vibration Set , GPS Antenna Foldable Mount Holder , Ardupilot APM 2.8 Flight Control Board , power module
