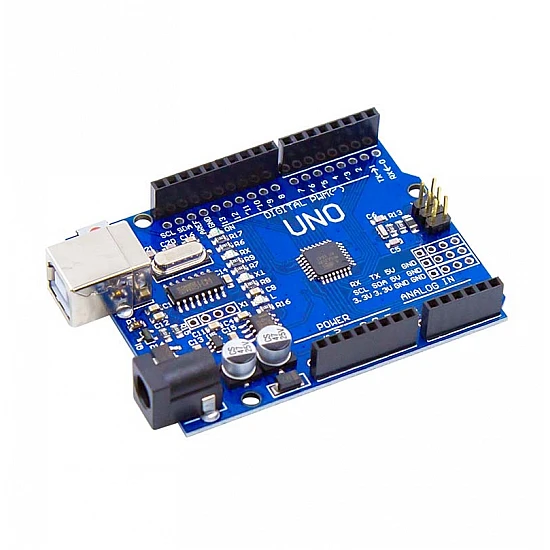

Arduino Uno R3 SMD Compatible Development Board

Arduino Uno R3 SMD Compatible Development Board
Arduino Uno R3 SMD Compatible Development Board
Arduino Uno R3 SMD Compatible Development Board
Arduino Uno R3 SMD Compatible Development Board
Arduino Uno R3 SMD Compatible Development Board
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹268
7 or more ₹252
30 or more ₹243

(Excluding 18% GST)





The Arduino Uno R3 Compatible Board is a microcontroller board which is based on the ATmega328. Arduino Uno has 14 digital input or output pins(where 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It has everything needed to support the microcontroller, you need to simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

  Features:

  • Easy application programming using open source IDE
  • Easy to learn Microcontroller using Arduino boards.
  • Easy application programming using open source IDE
  • Ready Library for most of the sensors and application modules.
  • More information on www.arduino.cc

 Specification:

Microcontroller Chip ATmega328
Analog I/O Pins 6
Digital I/O Pins 14 (of which 6 provide PWM output)
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
SRAM 2 KB
EEPROM 1 KB
Flash Memory 32 KB of which 0.5 KB used by bootloader
Clock Speed 16 MHz
Operating Voltage 5V
Input Voltage

7-12V

Input Voltage (limit)

6-20V


Package included:

1 x Arduino UNO R3 Compatible Development Board



Technical
Microcontroller

ATmega328

Analog I/O Pins

6

Clock Speed

16 MHz

Digital I/O Pins

14 (of which 6 provide PWM output)

EEPROM

1 KB

Flash Memory

32 KB of which 0.5 KB used by bootloader

Input Voltage

7-12V

Operating Voltage

5V

SRAM

2 KB
