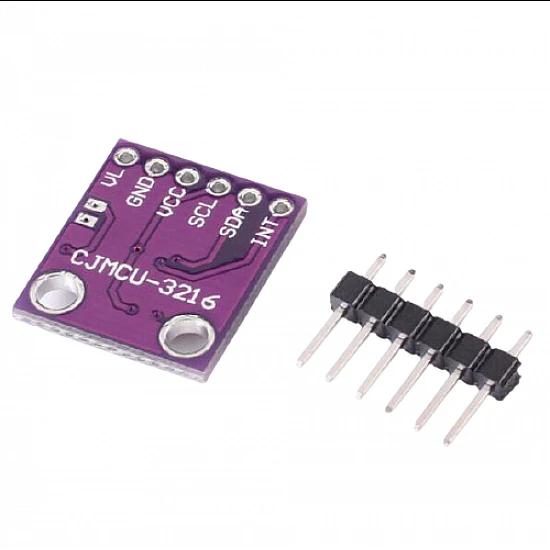

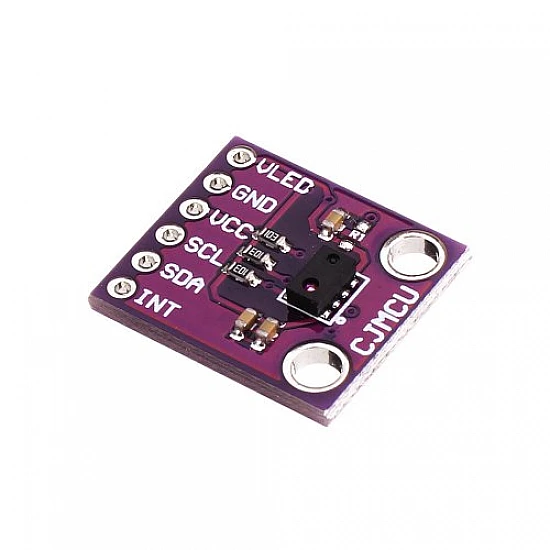

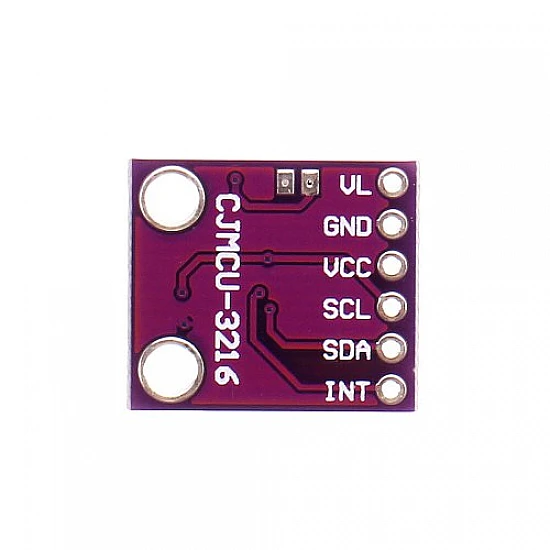

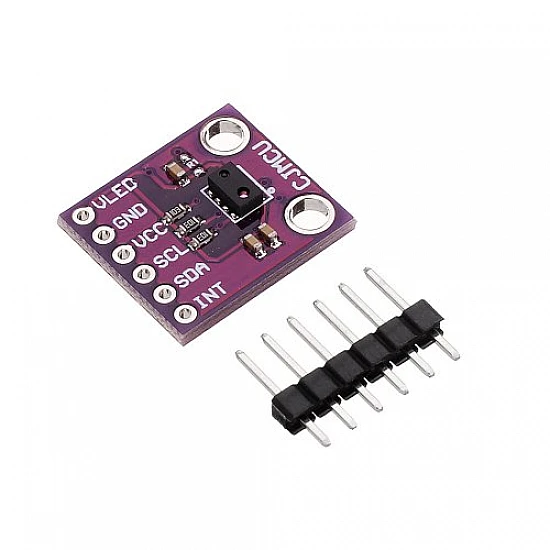

AP3216 Digital Ambient Light Proximity Sensor

AP3216 Digital Ambient Light Proximity Sensor
AP3216 Digital Ambient Light Proximity Sensor
AP3216 Digital Ambient Light Proximity Sensor
AP3216 Digital Ambient Light Proximity Sensor
AP3216 Digital Ambient Light Proximity Sensor
AP3216 Digital Ambient Light Proximity Sensor
AP3216 Digital Ambient Light Proximity Sensor
AP3216 Digital Ambient Light Proximity Sensor
AP3216 Digital Ambient Light Proximity Sensor
This Product is available in Ahmedabad - India Warehouse .
Approx Delivery Time is 2-5 Days.
₹97
10 or more ₹96
50 or more ₹95

(Excluding 18% GST)

AP3216 Digital Ambient Light Proximity Sensor is based on AP3216C that is an ALS and PS module that includes an Ambient Light Sensor (ALS), a Proximity Sensor (PS). The ALS (ambient light sensor) provides measurements of ambient light intensity which match the human eye’s response to light under a variety of lighting conditions.

Features:

  • Chip: AP3216C
  • I2C interface
  • Ambient Light Photo Sensor: 16-bit effective linear output (0~65535)
  • Proximity Detector: 10-bit effective linear output (0~1023)
  • Applications: Mobile phone, PAD,  Personal navigation device, LCD/PDP TV backlight system, Digital Frame, Capacitive touch screen applications, etc.

Package Includes:

1 x AP3216 Digital Ambient Light Proximity Sensor.

Technical
Chip Model

AP3216C

Input Voltage

2.8V - 3.8V

Interface

I2C

No. of Pins

6 Pin

Operating Temperature Range

-30°C to +85°C

Length

18 mm

Height

3 mm

Width

15 mm
